CP-UNC-BE20-MD

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Network Camera / 2 MP  / CP-UNC-BE20-MD

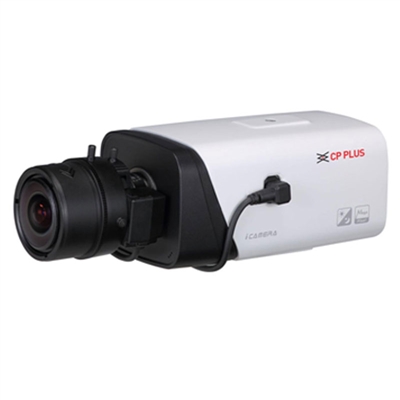

CP-UNC-BE20-MD

  • 1/2.7″ 2Megapixel PS CMOS Image Sensor
  • H.264 & MJPEG dual-stream encoding
  • Max 25/30fps@1080P(1920×1080)
  • WDR(120dB), Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
  • C/CS Mount Lens
  • Supports PoE, Micro SD Card
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
  • 1/2.7″ 2Megapixel PS CMOS Image Sensor
  • H.264 & MJPEG dual-stream encoding
  • Max 25/30fps@1080P(1920×1080)
  • WDR(120dB), Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
  • C/CS Mount Lens
  • Supports PoE, Micro SD Card
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
  • Image Sensor1/2.7" 2 Megapixel CMOS
  • Minimum Illumination0. 01Lux/F1.2(Color), 0.001Lux/F1.2(B/W)
  • Effective Pixels1920(H) x 1080(V), 2 Megapixels
  • Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
  • White BalanceAuto/Manual
  • LensC/CS Mount Lens
  • AGC ControlAuto/Manual
  • Video CompressionH.264/H.264H/H.264B/MJPEG
  • S/N RatioMore than 50 dB
  • Back Light Comp.BLC / HLC / WDR(120dB)
  • Video StreamingMain Stream:1080P/720P(1 ~ 25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 720P(1-13/4fps)
  • Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×288)
  • ICRAuto(ICR)/Color/B/W
  • ROIUp to 4 areas
  • Audio Input1 Ch.
  • Audio Output1 Ch.
  • Audio ComprerssionG.711a/ G.711u/ AAC
  • Alarm IN2 Ch.
  • Alarm Out1 Ch.
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.x, ONVIF Profile S, PSIA, CGI
  • Smart DetectionTripwire, Intrusion, Scene Change, Face Detect, Audio Detect, Abandoned/Missing Object
  • User Account20 users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Micro SDMicro SD, Max 128GB
  • Operating Temperature-30°C~+60°C, Less than 90% RH
  • Power SourceDC12V, PoE(802.3af)
  • Power ConsumptionMax 10W (ABF & ICR on)
  • RegulatoryCE, FCC and RoHS
  • Dimension74.1mm × 65.5mm × 135.4mm
  • Weight0.3kg
