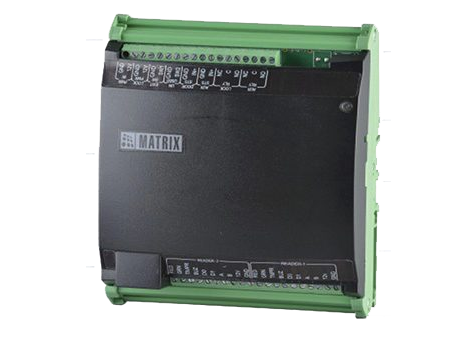

COSEC ARC DC100P
Specification
- Compact Design
- Supports 10,000 Users
- Modular Architecture
- Works as Standalone Access Control Solution
- Ideal for Network Mode Solution at Multiple Locations
- 1:1, 1:N and 1:G Verification
- Easy Integration
- Seamless Integration with Existing Third Party Wiegand Readers
- Aux-In and Aux-Out Port to Connect Third Party Devices
- Modular Architecture
- Works as Standalone Access Control Solution
- Ideal for Network Mode Solution at Multiple Locations
Functions
- Readers : Two
- Door : One/Two
- Users : 10,000
- Event Buffer : 1,00,000>
- Input Power : PoE or External Power Adapter (12VDC@2A)
- Communication : Ethernet (with COSEC PANEL LITE or COSEC application)
- CPU : 32-bit Microcontroller
- Flash Memory : 512kB Internal Flash + 4MB External Flash
- RAM Memory : 128kB SRAM
- LED : Two (Device Status and Network Status)
- Connections DATA0, DATA1, LED0, LED1, BUZZER, Tamper, Power, GND, RS-485A and RS-485B
- Power : 12VDC at max. 150mA per Reader
- Reader Types : Two Reader Ports for Wiegand or Matrix Reader
- Interface : Wiegand and RS-485 (for Matrix Reader only)
- Max Distance : 400 meters (on RS-485) and 100meters (on Wiegand)
- Exit Switch Port : Yes
- Door Status Sense Programmable : NO, NC and Supervised
- Door Lock Relay : Relay SPDT, Form C and Max 5A @ 24VDC
- AUX-In Port : Yes (Single door)/No (Double door)
- AUX-Out Port : Yes (Single door)/No (Double door)
| Model | COSEC ARC DC100P | ||||
|---|---|---|---|---|---|
| GENERAL | |||||
| Readers | Two | ||||
| Door | One/Two | ||||
| Users | 10,000 | ||||
| Event Buffer | 1,00,000 | ||||
| Input Power | PoE or External Power Adapter (12VDC@2A) | ||||
| Communication | Ethernet (with COSEC PANEL LITE or COSEC application) | ||||
| CPU | 32-bit Microcontroller | ||||
| Flash Memory | 512kB Internal Flash + 4MB External Flash | ||||
| RAM Memory | 5128kB SRAM | ||||
| LED | Two (Device Status and Network Status) | ||||
| Reader | |||||
| Connections | DATA0, DATA1, LED0, LED1, BUZZER, Tamper, Power, GND, RS-485A and RS-485B | ||||
| Power | 12VDC at max. 150mA per Reader | ||||
| Reader Types | Two Reader Ports for Wiegand or Matrix Reader | ||||
| Interface | Wiegand and RS-485 (for Matrix Reader only) | ||||
| Max Distance | 400 meters (on RS-485) and 100meters (on Wiegand) | ||||
| IN/OUT | |||||
| Exit Switch Port | Yes | ||||
| Door Status Sense | Programmable NO, NC and Supervised | ||||
| Door Lock Relay | Relay SPDT, Form C and Max 5A @ 24VDC | ||||
| AUX-In Port | Yes (Single door)/No (Double door) | ||||
| AUX-Out Port | Yes (Single door)/No (Double door) | ||||
