CP-UNC-BH20-MD

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Network Camera / 2 MP  / CP-UNC-BH20-MD

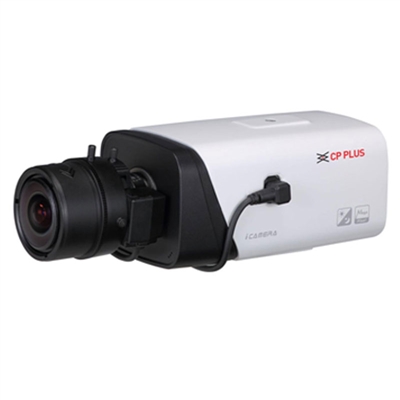

CP-UNC-BH20-MD

2 MP WDR Box Camera

  • 1/1.9″ 2MP PS CMOS Image Sensor
  • Max 25/30fps@1080P
  • Support H.264,MJPEG dual codec
  • Ultra WDR(120dB), Ultra Defog, ROI, EIS, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
  • C/CS Mount Lens, PoE
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-BH20-MD

2 MP WDR Box Camera

  • 1/1.9″ 2MP PS CMOS Image Sensor
  • Max 25/30fps@1080P
  • Support H.264,MJPEG dual codec
  • Ultra WDR(120dB), Ultra Defog, ROI, EIS, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
  • C/CS Mount Lens, PoE
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
  • Image Sensor1/1.9" 2MP Progressive scan CMOS
  • Minimum Illumination0. 002Lux/F1.2 (Color), 0.0002Lux/F1.2(B/W)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
  • White BalanceAuto/Manual
  • LensC/CS Mount Lens
  • AGC ControlAuto/Manual
  • Video CompressionH.264/MJPEG
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC/ HLC/ WDR(120dB)
  • Video StreamingMain Stream:1080P/720P(1 ~ 50/60fps), Extra Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 1080P/720P/D1(1 ~ 25/30fps)
  • Resolution1080P(1920× 1080) / 720P(1280× 720) /D1(704× 576) /CIF(352× 288)
  • ICRAuto(ICR)/Color/B/W
  • Audio Input1 Channel
  • Audio Output1 Channel
  • Audio ComprerssionG.711a / G.711u
  • Alarm IN2 Channel In
  • Alarm Out1 Channel Out
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
  • Smart DetectionTripwire, Intrusion, Scene Change, Missing/Abandoned, Audio detect, Face detect
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Micro SDMax 64GB
  • Operating Temperature-30°C~+60°C, Less than 95% RH
  • Power SourceDC12V(AC24V), PoE (802.3af)
  • Power ConsumptionMax 3.5W
  • Dimension74.1mm×65.5mm×135.4mm
  • Weight300g
