CP-UNC-C13L1-VMW

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Network Camera / 1.3 MP  / CP-UNC-C13L1-VMW

CP-UNC-C13L1-VMW

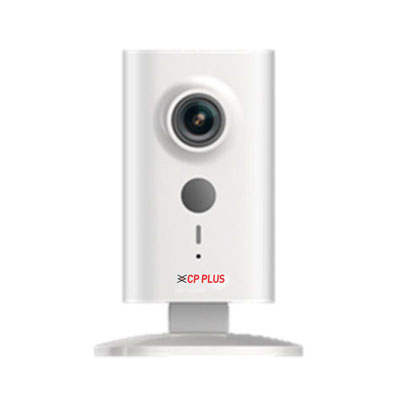

1.3MP HD WiFi IR Cube Camera – 10Mtr.

  • 1/3″ 1.3MP PS CMOS Image Sensor
  • Max25/30fps@1.3MP(1280×960)
  • H.264 & MJPEG dual-stream encoding
  • Wi-Fi support, 120° horizontal view angle
  • DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
  • 2.3 mm Lens
  • IR Range of 10 Mtrs, Micro SD Card
  • Built-in Mic & Speaker
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-C13L1-VMW

1.3MP HD WiFi IR Cube Camera – 10Mtr.

  • 1/3″ 1.3MP PS CMOS Image Sensor
  • Max25/30fps@1.3MP(1280×960)
  • H.264 & MJPEG dual-stream encoding
  • Wi-Fi support, 120° horizontal view angle
  • DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
  • 2.3 mm Lens
  • IR Range of 10 Mtrs, Micro SD Card
  • Built-in Mic & Speaker
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
  • Image Sensor1/3" 1.3Megapixel CMOS
  • Minimum Illumination0. 01Lux/F1.2 (Color), 0.001Lux/F1.2(B/W)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
  • White BalanceAuto/Sunny/Night/Outdoor/Customized
  • LensC/CS Mount Lens
  • AGC ControlAuto/Manual
  • Video CompressionH.264/H.264B/H.264H/ MJPEG
  • S/N RatioMore than 50 dB
  • Back Light Comp.BLC / HLC / WDR(120dB)
  • Video StreamingMain Stream:1.3M/720P(1 ~ 25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 720P(1~25/30fps)
  • Resolution1.3M(1280× 960)/720P(1280× 720)/D1(704× 576/704× 480)/ CIF(352× 288/352× 240)
  • Video Output1 channel BNC(1.0Vp-p,75O)
  • ICRAuto(ICR)/Color/B/W
  • Audio Input1 Ch.
  • Audio Output1 Ch.
  • Audio ComprerssionG.711a / G.711u/AAC
  • Alarm IN2 Ch.
  • Alarm Out1 Ch.
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Profile S
  • Smart DetectionTripwire, Intrusion, Abandoned/Missing, Scene Change, Audio detect, Face detect
  • User Account20 users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Micro SDMicro SD, Max 128GB
  • Operating Temperature-30°C~+60°C, Less than 95% RH
  • Power SourceDC12V, PoE(802.3af)
  • Power Consumption1 channel BNC(1.0Vp-p,75O)
  • RegulatoryCE, FCC and RoHS
  • Dimension74.1mm× 65.5mm× 135.4mm
  • Weight0.3Kg
