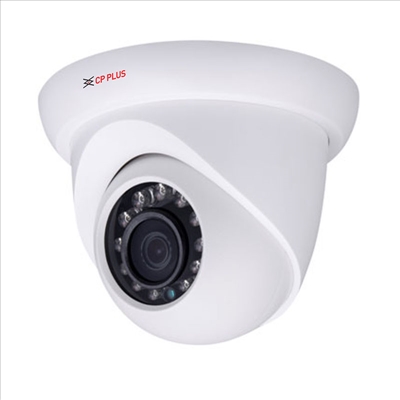

P-UNC-DA21L3
2 MP Full HD IR Dome Camera – 30Mtr.
- 1/2.7″ 2MP PS CMOS Image Sensor
- Max 25fps@1080P
- DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
- 3.6mm fixed lens (6mm optional)
- IR Range of 30 Mtrs, IP67, PoE
- CMS Software: KVMS Pro, vOptimus Pro
- Mobile Software: iCMOB, gCMOB, wCMOB
Image Sensor1/2.7" 2MP Progressive scan CMOS
Minimum Illumination0. 01Lux/F2.1(Color), 0Lux/F2.1(IR on)
Effective Pixels1920(H) x 1080(V), 2 Megapixels
Shutter SpeedAuto/Manual, 1s~1/100000s
White BalanceAuto/Manual
Lens3.6mm (6mm optional)
Video CompressionH.264/H.264H/H.264B/MJPEG
S/N RatioMore than 50dB
Video StreamingMain Stream: 1080P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)
Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
ICRAuto(ICR)/Color/B/W
Bit RateH.264: 4kbps~8192bps
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
User Account20 Users
Smart PhoneiPhone, iPad, Android, Windows Phone
IRIR Range of 30 Mtr.
Operating Temperature-30°C~+60°C , Less than 95%RH
Power SourceDC12V, PoE (802.3af)
Power Consumption<3.8W(IR on)
Weatherproof StandardIP67
DimensionΦ108mm×84mm
Weight0.25Kg(0.38 with packaging)
