1/2.3″ 12 MP PS CMOS Image Sensor
H.264 & MJPEG dual-stream encoding
Max 15fps@12M,25/30fps@3M
DWDR, Day/Night(ICR), 3DNR, ROI, AWB, AGC, BLC
Multiple Correct Mode:Original, Panoramic, Double Panoramic,1 3,Eptz, 4 pictures
IR Range of 10 Mtr.
Supports PoE, Micro SD Card, IP67, IK10
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

1/2.3″ 12 MP PS CMOS Image Sensor
H.264 & MJPEG dual-stream encoding
Max 15fps@12M,25/30fps@3M
DWDR, Day/Night(ICR), 3DNR, ROI, AWB, AGC, BLC
Multiple Correct Mode:Original, Panoramic, Double Panoramic,1 3,Eptz, 4 pictures
IR Range of 10 Mtr.
Supports PoE, Micro SD Card, IP67, IK10
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

Image Sensor1/2.3"12 Megapixel CMOS

Minimum Illumination0.01Lux/F2.2(Color), 0Lux/F2.2(IR on)

Shutter SpeedAuto/Manual, 1/3~1/100000s

White BalanceAuto/Manual

Lens1.57mm

AGC ControlAuto/Manual

Video CompressionH.264H/H.264/MJPEG/JPEG

S/N RatioMore than 50 dB

Back Light Comp.BLC/ HLC/ DWDR

Video StreamingMain Stream:12M(1~15fps)/3M (1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25fps)

Resolution12M(4000× 3000)/8M(2880× 2880)/6M(2880× 2160)/3M(2048× 153)

ICRAuto(ICR)/Color/B/W

Audio Input1 Ch

Audio Output1 Ch

Audio ComprerssionG.711a/G.711u/PCM

Alarm IN2 Ch

Alarm Out1 Ch

ProtocolHTTP,TCP,ARP,RTSP, RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,DDNS,PPPOE, IPv4/v6,SNMP,QoS,UPnP,NTP, Onvif Profile S

Smart PhoneiPhone, iPad, Android Phone

IR10Mtr

Micro SDMicro SD

Operating Temperature-30°C~+60°C, Less than 95%RH

Power SourceDC12V, PoE(802.3af)

Power Consumption<13W

Weatherproof StandardIP67, IK10

RegulatoryCE, FCC and RoHS

DimensionΦ150mm x 50.7mm

Weight0.58kg(0.86kg with packaging )

Monday(9:30am-6:00pm)
Tuesday(9:30am-6:00pm)
Wednesday(9:30am-6:00pm)
Thursday(9:30am-6:00pm)
Friday(9:30am-6:00pm)
Saturday(9:30am-6:00pm)
Sunday(Holiday)

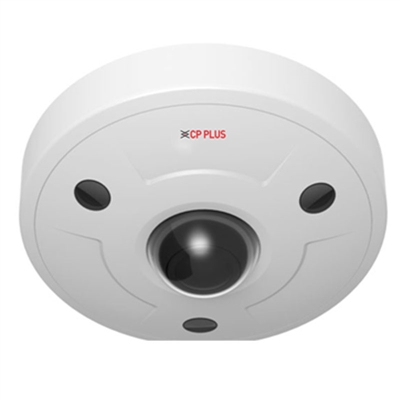

CP-UNC-EH4K12L1-M
