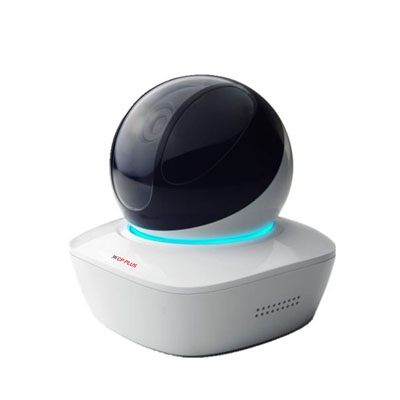

CP-UNC-PT13L1-VMW
1.3MP HD WiFi IR PT Camera – 10Mtr.
- 1/3″ 1.3MP CMOS Image Sensor
- Max25/30fps@1.3MP(1280×960)
- H.264 & MJPEG dual-stream encoding
- Wi-Fi support, 0~355° Pan range, 90°Tilt range, 25 presets
- DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
- 3.6 mm Lens
- IR Range of 10 Mtrs, Micro SD Card
- Built-in Mic & Speaker
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software: KVMS Pro, vOptimus Pro
Image Sensor1/3" 1.3MP CMOS
Minimum Illumination0.01lux/F2.0(color),0lux/F2.0(IR on)
Shutter SpeedAuto/Manual, 1/3s~1/30000s
White BalanceAuto/Manual
Lens3.6mm
Video CompressionH.264/MJPEG
S/N RatioMore than 50dB
Back Light Comp.BLC/ HLC/ DWDR
Video StreamingMain Stream: 1.3MP/720P(1~30fps), Extra Stream: VGA/QVGA(1~30fps)
Resolution1.3MP/720P/VGA/QVGA
ICRAuto(ICR)/Color/B/W
Audio InputBuilt in Mic
Audio OutputBuilt in Speaker
InterfaceMicro USB
WirelessWi-Fi(IEEE802.11b/g/n), 50m(open field)
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
User Account10 Users
Smart PhoneiPhone, iPad, Android, Windows Phone
IRIR Range of 10 Mtr.
Micro SDMax 128GB
Operating Temperature-10°C~+45°C, Less than 95%RH
Power SourceDC 5V2A
Power Consumption<7.5W
Dimension94mm x 94mm x 94mm
Weight0.36Kg
