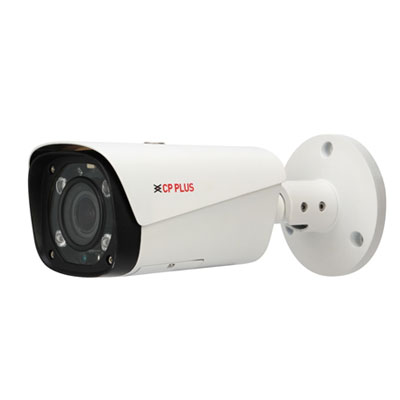

CP-UNC-TB13FL6-MD
1.3 MP HD WDR IR Bullet Camera – 60Mtr.
- 1/3″ 1.3MP PS CMOS Image Sensor
- 25/30fps@1.3M(1280×960)
- H.264 and MJPEG dual-stream encoding
- WDR(120dB), Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
- 2.7 -12mm Varifocal Lens
- IR Range of 60 Mtrs, IP67, PoE
- Mobile Software: iCMOB, gCMOB, wCMOB
- CMS Software: KVMS Pro, vOptimus Pro
Image Sensor1/3" 1.3MP Progressive scan CMOS
Minimum Illumination0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)
Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
White BalanceAuto/Manual
Lens2.7 -12mm Varifocal Lens
Video CompressionH.264/MJPEG
S/N RatioMore than 50dB
Back Light Comp.BLC/ HLC/ WDR(120dB)
Video StreamingMain Stream: 1.3M (1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)
Resolution1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
ICRAuto(ICR)/Color/B/W
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
User Account20 Users
Smart PhoneiPhone, iPad, Android, Windows Phone
IRIR Range of 60 Mtr.
Micro SDMax 128GB
Operating Temperature-30°C~+60°C , Less than 95%RH
Power SourceDC12V, PoE (802.3af)
Power Consumption<6W
Weatherproof StandardIP67
Dimension72mm × 80mm × 212.8mm
Weight650g
