CP-UNC-TD13L4

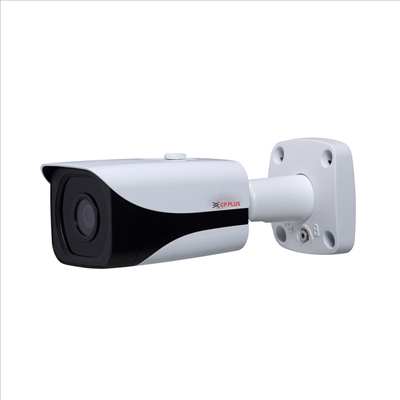

1.3 MP HD IR Bullet Camera – 60Mtr.

1/3″ 1.3MP PS CMOS Image Sensor
25/30fps@1.3M(1280×960)
H.264 and MJPEG dual-stream encoding
DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
2.7 -12mm Varifocal Lens
IR Range of 60 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-TB13FL6-M

1.3 MP HD IR Bullet Camera – 60Mtr.

1/3″ 1.3MP PS CMOS Image Sensor
25/30fps@1.3M(1280×960)
H.264 and MJPEG dual-stream encoding
DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
2.7 -12mm Varifocal Lens
IR Range of 60 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

Image Sensor1/3" 1.3MP Progressive scan CMOS

Minimum Illumination0.01Lux/F1.4(Color), 0Lux/F1.4(IR on)

Shutter SpeedAuto/Manual, 1/3(4)~1/10000s

White BalanceAuto/Manual

Lens2.7 -12mm Varifocal Lens

Video CompressionH.264/MJPEG

S/N RatioMore than 50dB

Back Light Comp.BLC/ HLC/ DWDR

Video StreamingMain Stream: 1.3M (1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)

Resolution1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)

ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI

User Account20 Users

Smart PhoneiPhone, iPad, Android, Windows Phone

IRIR Range of 60 Mtr.

Micro SDMax 128GB

Operating Temperature-30°C~+60°C , Less than 95%RH

Power SourceDC12V, PoE (802.3af)

Power Consumption<6W

Weatherproof StandardIP67

Dimension72mm × 80mm × 212.8mm

Weight650g
