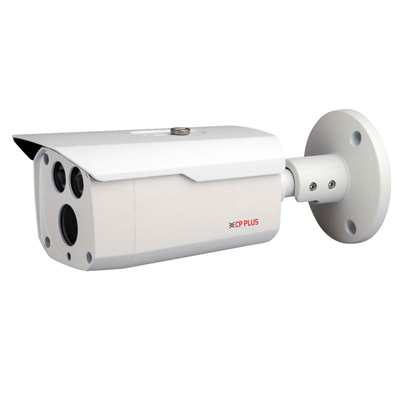

CP-UNC-TD13L6

1/3″ 1.3MP PS CMOS Image Sensor
25/30fps@1.3M(1280×960)
H.264 and MJPEG dual-stream encoding
DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
6mm fixed lens
Smart Detection supported
IR Range of 60 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB

1/3″ 1.3MP PS CMOS Image Sensor
25/30fps@1.3M(1280×960)
H.264 and MJPEG dual-stream encoding
DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
6mm fixed lens
Smart Detection supported
IR Range of 60 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB

Image Sensor 1/3" 1.3Megapixel progressive scan CMOS

Minimum Illumination 0. 01Lux/F2.0(Color), 0Lux/F2.0(IR on)

Shutter Speed Auto/Manual, 1/3(4)~1/10000s

White Balance Auto/Manual

Lens 6mm

AGC Control Auto/Manual

S/N Ratio More than 50dB

Back Light Comp. BLC / HLC / DWDR

Video Streaming Main Stream: 1.3M/720P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 720P(1~13/4fps)

Resolution 1.3M(1280x960)/720P(1280× 720)/ D1(704× 576/704× 480) /CIF(352× 288/352× 240)

ICR Auto(ICR)/Color/B/W

Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI

Smart Detection Tripwire, Intrusion, Scene Change, Face detect

User Account 20 Users

Smart Phone iPhone, iPad, Android, Windows Phone

IR IR Range of 60 Mtr

Operating Temperature -30°C~+60°C, Less than 95% RH

Power Source DC12V, PoE (802.3af)

Power Consumption Max 3.7W

Weatherproof Standard IP67

Dimension Φ90.4mm × 241.8mm

Weight 0.61Kg(with package 0.80kg)
