CP-UNC-TD20L4-D

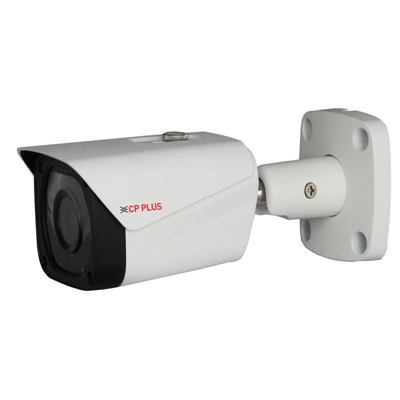

2 MP Full HD WDR IR Bullet Camera – 40Mtr.

1/2.7″ 2Megapixel PS CMOS Image Sensor
Max 25/30fps@1080P
H.264 and MJPEG dual-stream encoding
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart Detection supported
3.6mm fixed lens (6mm optional)
IR Range of 40 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-TD20L4-D

2 MP Full HD WDR IR Bullet Camera – 40Mtr.

1/2.7″ 2Megapixel PS CMOS Image Sensor
Max 25/30fps@1080P
H.264 and MJPEG dual-stream encoding
WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart Detection supported
3.6mm fixed lens (6mm optional)
IR Range of 40 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

Image Sensor1/2.7" 2 Megapixel CMOS

Minimum Illumination0. 01Lux/F1.2(Color), 0.001Lux/F1.2(B/W)

Effective Pixels1920(H) x 1080(V), 2 Megapixels

Shutter SpeedAuto/Manual, 1/3(4)~1/100000s

White BalanceAuto/Manual

LensC/CS Mount Lens

AGC ControlAuto/Manual

Video CompressionH.264/H.264H/H.264B/MJPEG

S/N RatioMore than 50 dB

Back Light Comp.BLC / HLC / WDR(120dB)

Video StreamingMain Stream:1080P/720P(1 ~ 25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 720P(1-13/4fps)

Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×288)

ICRAuto(ICR)/Color/B/W

ROIUp to 4 areas

Audio Input1 Ch.

Audio Output1 Ch.

Audio ComprerssionG.711a/ G.711u/ AAC

Alarm IN2 Ch.

Alarm Out1 Ch.

ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.x, ONVIF Profile S, PSIA, CGI

Smart DetectionTripwire, Intrusion, Scene Change, Face Detect, Audio Detect, Abandoned/Missing Object

User Account20 users

Smart PhoneiPhone, iPad, Android, Windows Phone

Micro SDMicro SD, Max 128GB

Operating Temperature-30°C~+60°C, Less than 90% RH

Power SourceDC12V, PoE(802.3af)

Power ConsumptionMax 10W (ABF & ICR on)

RegulatoryCE, FCC and RoHS

Dimension74.1mm × 65.5mm × 135.4mm

Weight0.3kg
