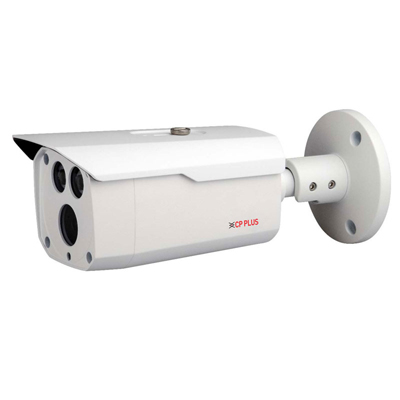

CP-UNC-TD41L8-VMD

4 MP Full HD WDR IR Bullet Camera – 80Mtr.

  • 1/3″ 4Megapixel PS CMOS Image Sensor
  • 25/30fps@4M(2688×1520)
  • H.265 & H.264 triple-stream encoding
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (6mm lens optional)
  • IR Range of 80 Mtrs, IP67, Micro SD, PoE
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-TD41L8-VMD

4 MP Full HD WDR IR Bullet Camera – 80Mtr.

  • 1/3″ 4Megapixel PS CMOS Image Sensor
  • 25/30fps@4M(2688×1520)
  • H.265 & H.264 triple-stream encoding
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (6mm lens optional)
  • IR Range of 80 Mtrs, IP67, Micro SD, PoE
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
  • Image Sensor1/3" 4Megapixel progressive scan CMOS
  • Minimum Illumination0.08Lux/F2.0 (Color), 0Lux/F2.0 (IR on)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
  • White BalanceAuto/Sunny/Night/Outdoor/Customized
  • Lens3.6mm (6mm optional)
  • AGC ControlAuto/Manual
  • Video CompressionH.265+/H.265/H.264+/H.264
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC / HLC / WDR(120dB)
  • Video StreamingMain Stream: 4M(1~25/30fps), Sub Stream: D1(1~25/30fps), Third Stream: 720P(1~25/30fps)
  • Resolution4M(2688×1520)/3M(2304×1296)/ 1080P(1920×1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
  • ICRAuto(ICR)/Color/B/W
  • Audio Input1 Channel
  • Audio Output1 Channel
  • Audio ComprerssionG.711a/ G.711Mu/ AAC/ G.726
  • Alarm IN1 Channel
  • Alarm Out1 Channel
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF, PSIA, CGI
  • Smart DetectionTripwire,Intrusion, Object Abandoned/Missing,Face Detection
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android Phone
  • IRIR Range of 80 Mtr
  • Micro SDMax 128GB
  • Operating Temperature-30°C~+60°C, Less than 95% RH
  • Power SourceDC12V, PoE (802.3af)
  • Power Consumption<7.5W
  • Weatherproof StandardIP67
  • Dimension241.8mm x 90.4mm x 90.3mm
  • Weight0.61Kg
