CP-UNC-TD4K08L3

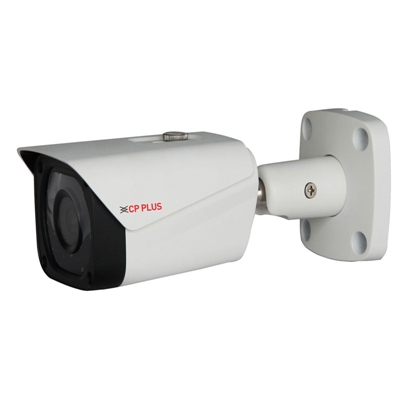

4K Full HD IR Bullet Camera – 30Mtr.

1/2.3″ 4K PS CMOS Image Sensor
7fps@4K
H.264 and MJPEG dual-stream encoding
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
4mm fixed lens
IR Range of 30 Mtrs, IP66, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-TD4K08L3

4K Full HD IR Bullet Camera – 30Mtr.

1/2.3″ 4K PS CMOS Image Sensor
7fps@4K
H.264 and MJPEG dual-stream encoding
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
4mm fixed lens
IR Range of 30 Mtrs, IP66, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

Image Sensor1/2.3" 4K progressive scan CMOS

Minimum Illumination0.1Lux/F1.6 (Color), 0Lux/F1.6(IR on)

Shutter SpeedAuto/Manual, 1/3(4)~1/10000s

White BalanceAuto/Manual

Lens4mm

AGC ControlAuto/Manual

S/N RatioMore than 50dB

Back Light Comp.BLC / HLC / DWDR

Video StreamingMain Stream: 4K(1~7fps)/3M/1080P/ (1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 720P(1-5/8fps) (WDR on), 720P(1-18/2fps) (WDR off)

Resolution4K(3840× 2160)3M(2048× 1536)/1080P(1920× 1080) /720P(1280× 720) /D1(704× 576/704× 480) / CIF(352× 288/352× 240)

ICRAuto(ICR)/Color/B/W

ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI

Smart DetectionTripwire, Intrusion, Scene Change, Face detect

User Account20 Users

Smart PhoneiPhone, iPad, Android, Windows Phone

IRIR Range of 30 Mtr.

Operating Temperature-40°C~+60°C, Less than 95% RH

Power SourceDC12V, PoE (802.3af)

Power ConsumptionMax 7.5W

Weatherproof StandardIP66

Dimension178.4mm × 70mm × 69.9mm
