CP-UNC-TE51ZL5-MD

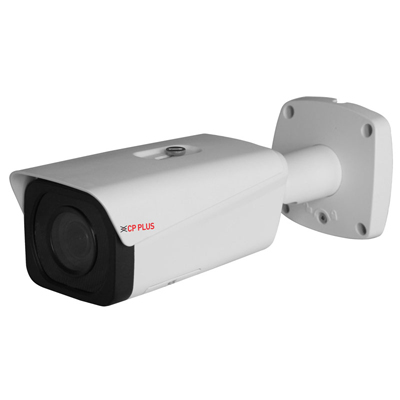

5MP Full HD WDR IR Bullet Camera – 50Mtr.

1/3″ 5MP PS CMOS Image Sensor
Max 25fps @ 5MP
H.265 / H.264 / MJPEG triple-stream encoding
WDR(120dB), Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
2.7 -12mm Motorized Lens
IR Range of 50 Mtrs, Micro SD, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-TE51ZL5-MD

5MP Full HD WDR IR Bullet Camera – 50Mtr.

1/3″ 5MP PS CMOS Image Sensor
Max 25fps @ 5MP
H.265 / H.264 / MJPEG triple-stream encoding
WDR(120dB), Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
2.7 -12mm Motorized Lens
IR Range of 50 Mtrs, Micro SD, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

Image Sensor1/3" 5MP Progressive scan CMOS

Minimum Illumination0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)

Shutter SpeedAuto/Manual, 1/3(4)~1/10000s

White BalanceAuto

Lens2.7 -12mm Motorized Lens

AGC ControlAuto/Manual

Video CompressionH.265/H.264/H.264H/H.264B/MJPEG

S/N RatioMore than 50dB

Back Light Comp.BLC/ HLC/ WDR(120dB)

Video StreamingMain Stream: 5M(1~25/30fps) / 1080P/720P(1~25/30fps), Sub Stream: D1/CIF(1 ~ 25/30fps)

Resolution5M(2536×1920) / 3M(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1(704×576) / CIF(352×288)

ICRAuto(ICR)/Color/B/W

Audio Input1 Channel

Audio Output1 Channel

Audio ComprerssionG.711a / G.711u/ AAC

Alarm IN2 Channel

Alarm Out1 Channel

ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI

Smart DetectionTripwire, Intrusion, Scene Change, Missing/Abandoned, Audio detect, Face detect

User Account20 Users

Smart PhoneiPhone, iPad, Android, Windows Phone

IRIR Range of 50 Mtr.

Micro SDMicro SD, Max 128GB

Operating Temperature-30°C~+60°C, Less than 95% RH

Power SourceDC12V, PoE (802.3af)

Power Consumption<11.5W (with IR on, motorized lens working)

Weatherproof StandardIP67

Dimension272.9 mm × 94.9mm × 94.9mm

Weight1.1kg
