CP-UNC-VA20L3-M

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Network Camera / 2 MP  / CP-UNC-VA20L3-M

CP-UNC-VA20L3-M

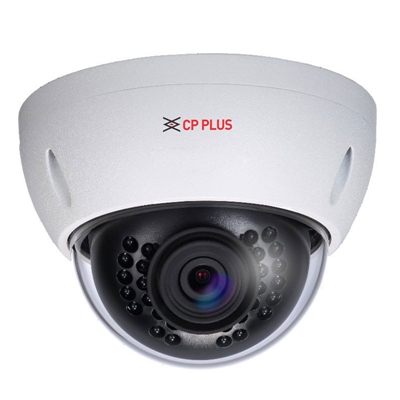

2 MP Full HD IR Vandal Dome Camera – 30Mtr.

  • 1/3″ 3MP PS CMOS Image Sensor
  • Max 25fps@1080P
  • DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
  • Max 25fps@1080P Resolution
  • 3.6mm fixed lens (2.8mm,6mm optional)
  • IR Range of 30 Mtrs, IP66, IK10, PoE
  • CMS Software: KVMS Pro, vOptimus Pro
  • H.264 and MJPEG dual-stream encoding
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • H.264 MJPEG dual-stream encoding

CP-UNC-VA20L3-M

2 MP Full HD IR Vandal Dome Camera – 30Mtr.

  • 1/3″ 3MP PS CMOS Image Sensor
  • Max 25fps@1080P
  • DWDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
  • Max 25fps@1080P Resolution
  • 3.6mm fixed lens (2.8mm,6mm optional)
  • IR Range of 30 Mtrs, IP66, IK10, PoE
  • CMS Software: KVMS Pro, vOptimus Pro
  • H.264 and MJPEG dual-stream encoding
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • H.264 MJPEG dual-stream encoding
  • Image Sensor1/3" 3MP Progressive scan CMOS
  • Minimum Illumination0.01Lux/F1.6(Color), 0Lux/F1.6(IR on)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
  • White BalanceAuto/Manual
  • Lens3.6mm (2.8mm, 6mm optional)
  • Video CompressionH.264/MJPEG
  • S/N RatioMore than 50dB
  • Video StreamingMain Stream: 1080P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)
  • Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
  • Privacy MaskUp to 4 areas
  • ICRAuto(ICR)/Color/B/W
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
  • EthernetRJ-45 (10/100Base-T)
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • IRIR Range of 30 Mtr.
  • Micro SDMicro SD Max 64GB
  • Operating Temperature-30°C~+60°C , Less than 95%RH
  • Power SourceDC12V, PoE (802.3af)
  • Power Consumption<5W
  • Weatherproof StandardIP66 & IK10
  • DimensionΦ110mm × 81mm
  • Weight0.39kg
