CP-UNC-VB13FL3-VMD

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Network Camera / 1.3 MP  / CP-UNC-VB13FL3-VMD

CP-UNC-VB13FL3-VMD

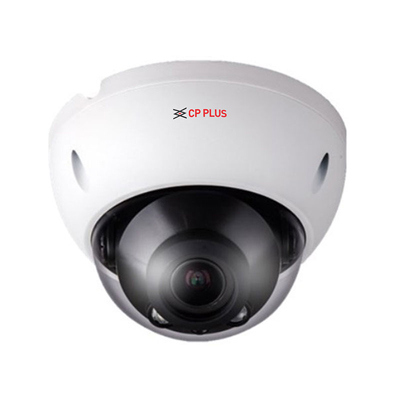

1.3 MP HD WDR IR Vandal Dome Camera – 30Mtr.

  • 1/3″ 1.3MP PS CMOS Image Sensor
  • Max 25fps@1.3MP
  • H.264 and MJPEG dual-stream encoding
  • WDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
  • 2.7 -12mm Varifocal Lens
  • IR Range of 30 Mtrs, IP67, IK10, PoE
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-VB13FL3-VMD

1.3 MP HD WDR IR Vandal Dome Camera – 30Mtr.

  • 1/3″ 1.3MP PS CMOS Image Sensor
  • Max 25fps@1.3MP
  • H.264 and MJPEG dual-stream encoding
  • WDR, Day/Night(ICR), Auto Iris, 3DNR, AWB, AGC, BLC
  • 2.7 -12mm Varifocal Lens
  • IR Range of 30 Mtrs, IP67, IK10, PoE
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
  • Image Sensor1/3" 1.3MP Progressive scan CMOS
  • Minimum Illumination0.1Lux/F1.4(Color), 0Lux/F1.4(IR on)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
  • White BalanceAuto/Manual
  • Lens2.7 -12mm Varifocal Lens
  • Video CompressionH.264/MJPEG
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC/ HLC/ WDR(120dB)
  • Video StreamingMain Stream: 1.3M/720P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)
  • Resolution1.3M(1280×960) / 720P(1280×720) / D1(704×576/704×480) / CIF(352×288/352×240)
  • ICRAuto(ICR)/Color/B/W
  • Audio Input1 Ch.
  • Audio Output1 Ch.
  • Audio ComprerssionG.711a / G.711u
  • Alarm IN1 Ch.
  • Alarm Out1 Ch.
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • IRIR Range of 30 Mtr.
  • Micro SDMax 128GB
  • Operating Temperature-30°C~+60°C , Less than 95%RH
  • Power SourceDC12V, PoE (802.3af)
  • Power Consumption<4W
  • Weatherproof StandardIP67 & IK10
  • Dimensionφ122mm × 89mm
  • Weight500g
