Active System Integration

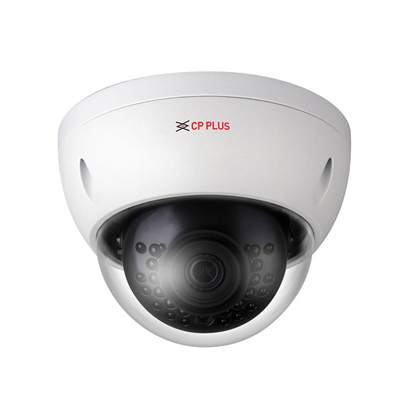

CP-UNC-VD20L3-D

2 MP Full HD IR WDR Vandal Dome Camera – 30Mtr.

1/2.8″ 2Megapixel PS CMOS Image Sensor
Max 25/30fps@1080P
H.264 and MJPEG dual-stream encoding
WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart Detection supported
3.6mm fixed lens (2.8mm, 6mm optional)
IR Range of 30 Mtrs, IP67, IK10, Card, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-VD20L3-D

2 MP Full HD IR WDR Vandal Dome Camera – 30Mtr.

1/2.8″ 2Megapixel PS CMOS Image Sensor
Max 25/30fps@1080P
H.264 and MJPEG dual-stream encoding
WDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart Detection supported
3.6mm fixed lens (2.8mm, 6mm optional)
IR Range of 30 Mtrs, IP67, IK10, Card, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

Image Sensor1/2.7" 2Megapixel progressive scan CMOS

Minimum Illumination0. 01Lux/F2.0(Color), 0Lux/F2.0(IR on)

Shutter SpeedAuto/Manual, 1/3(4)~1/10000s

White BalanceAuto/Manual

Lens3.6mm(6mm optional)

AGC ControlAuto/Manual

S/N RatioMore than 50dB

Back Light Comp.BLC / HLC / WDR(120dB)

Video StreamingMain Stream: 1080P/720P(1~25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 720P(1~13/4fps)

Resolution1080P(1920× 1080)/ 720P(1280× 720) / D1(704× 576/704× 480)/ CIF(352× 288/352× 240)

ICRAuto(ICR)/Color/B/W

ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI

Smart DetectionTripwire, Intrusion, Scene Change, Face detect

User Account20 Users

Smart PhoneiPhone, iPad, Android, Windows Phone

IRIR Range of 30 Mtr.

Operating Temperature-40°C~+60°C, Less than 95% RH

Power SourceDC12V, PoE (802.3af)

Power ConsumptionMax 4W

Weatherproof StandardIP67 & IK10

DimensionΦ110mm × 81mm

Weight0.33kg(with package 0.47kg)
