CP-UNC-VD40L3-MD

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Network Camera / 4MP  / CP-UNC-VD40L3-MD

CP-UNC-VD40L3-MD

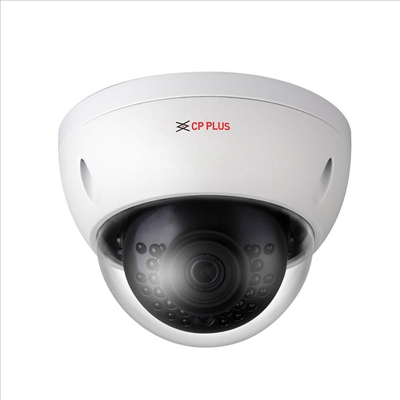

4 MP Full HD WDR IR Vandal Dome Camera – 30Mtr.

  • 1/3″ 4Megapixel PS CMOS Image Sensor
  • 20fps@4MP, 25/30fps@3MP
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Max 25fps@1080P Resolution
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • IR Range of 30 Mtrs, IP67, PoE
  • CMS Software: KVMS Pro, vOptimus Pro
  • H.264 and MJPEG dual-stream encoding
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • H.264 MJPEG dual-stream encoding

CP-UNC-VD40L3-MD

4 MP Full HD WDR IR Vandal Dome Camera – 30Mtr.

  • 1/3″ 4Megapixel PS CMOS Image Sensor
  • 20fps@4MP, 25/30fps@3MP
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Max 25fps@1080P Resolution
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • IR Range of 30 Mtrs, IP67, PoE
  • CMS Software: KVMS Pro, vOptimus Pro
  • H.264 and MJPEG dual-stream encoding
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • H.264 MJPEG dual-stream encoding
  • Image Sensor1/3" 4Megapixel progressive scan CMOS
  • Minimum Illumination0. 01Lux/F2.1(Color), 0Lux/F2.1(IR on)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
  • White BalanceAuto/Manual
  • Lens3.6mm(2.8mm, 6mm optional)
  • S/N RatioMore than 50dB
  • Video StreamingMain Stream: 4M(1~20fps)/3M(1~25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps), Third Stream: 720P(1-5/8fps) (WDR on), 720P(1-18/2fps) (WDR off)
  • Resolution4M(2560× 1440)/3M(2304× 1296)/1080P(1920× 1080)/720P(1280×720)/D1(704× 576/704× 480) /CIF(352× 288/352× 240)
  • Privacy MaskUp to 4 areas
  • ICRAuto(ICR)/Color/B/W
  • Audio Input1 Ch.
  • Audio Output1 Ch.
  • Audio ComprerssionG.711a / G.711u
  • Alarm IN1 Ch.
  • Alarm Out1 Ch.
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
  • EthernetRJ-45 (10/100Base-T)
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • IRIR Range of 30 Mtr.
  • Micro SDMicro SD, Max 64GB
  • Operating Temperature-40°C~+60°C, Less than 95% RH
  • Power SourceDC12V, PoE (802.3af)
  • Power ConsumptionMax 5W
  • Weatherproof StandardIP67
  • DimensionΦ110mm× 81mm
  • Weight0.33Kg(with package 0.47Kg)
