CP-UNC-VD41L3-VMD

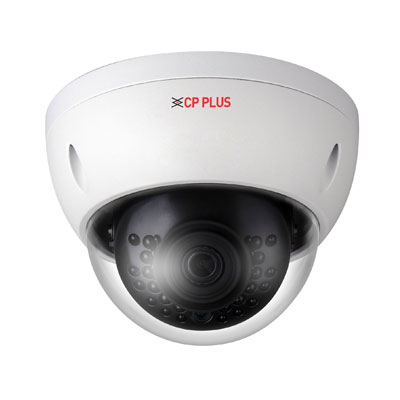

4 MP Full HD WDR IR Vandal Dome Camera – 30Mtr.

  • 1/3″ 4Megapixel PS CMOS Image Sensor
  • 25/30fps@4M(2688×1520)
  • H.265 & H.264 Triple – stream encoding
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • IR Range of 30 Mtrs, IP67, IK10, PoE, SD Card
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-VD41L3-VMD

4 MP Full HD WDR IR Vandal Dome Camera – 30Mtr.

  • 1/3″ 4Megapixel PS CMOS Image Sensor
  • 25/30fps@4M(2688×1520)
  • H.265 & H.264 Triple – stream encoding
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • 3.6mm fixed lens (2.8mm, 6mm optional)
  • IR Range of 30 Mtrs, IP67, IK10, PoE, SD Card
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
  • Image Sensor1/3" 4Megapixel progressive scan CMOS
  • Minimum Illumination0.08Lux/F2.0 (Color), 0Lux/F2.0 (IR on)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
  • White BalanceAuto/Manual
  • Lens3.6mm(2.8mm, 6mm optional)
  • AGC ControlAuto/Manual
  • Video CompressionH.265+/H.265/H.264+/H.264
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC / HLC / WDR(120dB)
  • Video StreamingMain Stream: 4M(1~25/30fps), Sub Stream D1/CIF(1~25/30fps),Third Stream: 720P(1~25/30fps)
  • Resolution4M(2688×1520) / 3M(2304×1296) / 1080P(1920×1080) / 1.3M(1280x960) / 720P(1280×720) / D1(704×576/704×480) / VGA(640×480) / CIF(352×288/352×240)
  • Digital Zoom16x
  • Motion DetectionOff / On (4 Zone, Rectangle)
  • ICRAuto(ICR)/Color/B/W
  • ROIOff / On (4 Zone)
  • Audio Input1 Ch.
  • Audio Output1 Ch.
  • Audio ComprerssionG.711a/ G.711Mu/ AAC/ G.726
  • Alarm IN1 Ch.
  • Alarm Out1 Ch.
  • ProtocolHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;IGMP; SNMP, ONVIF, PSIA, CGI
  • Smart DetectionTripwire, Intrusion, Object Abandoned/Missing, Face Detection
  • User Account20 Users
  • Smart PhoneIOS, Android
  • IRIR Range of 30 Mtr
  • Micro SDMicro SD, Max 128GB
  • Operating Temperature-30°C~+60°C, Less than 95% RH
  • Power SourceDC12V, PoE (802.3af)
  • Power ConsumptionMax 5W
  • Weatherproof StandardIP67 & IK10
  • DimensionΦ109.9mm × 81mm (4.33”×3.19”)
  • Weight0.41kg (0.91lb)
