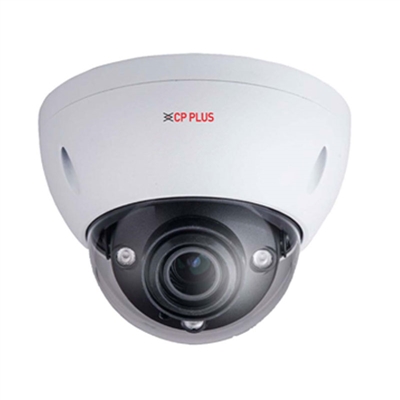

CP-UNC-VE20ZL5-MD

2 MP Full HD WDR IP IR Vandal Dome Camera – 50 Mtr.

1/2.7″ 2Megapixel PS CMOS Image Sensor
H.264 & MJPEG dual-stream encoding
Max 25/30fps@1080P(1920×1080)
WDR(120dB), Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
IR Range of 50 Mtrs.
2.7mm ~12mm motorized lens
Supports PoE, IP67, IK10, Micro SD Card
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-VE20ZL5-MD

2 MP Full HD WDR IP IR Vandal Dome Camera – 50 Mtr.

1/2.7″ 2Megapixel PS CMOS Image Sensor
H.264 & MJPEG dual-stream encoding
Max 25/30fps@1080P(1920×1080)
WDR(120dB), Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
IR Range of 50 Mtrs.
2.7mm ~12mm motorized lens
Supports PoE, IP67, IK10, Micro SD Card
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

Image Sensor1/2.7" 2 Megapixel CMOS

Minimum Illumination0.01Lux/F1.4(Color); 0Lux/F1.4(IR on)

Shutter SpeedAuto/Manual, 1/3(4)~1/10000s

White BalanceAuto/Manual

Lens2.7mm~12mm Motorized

AGC ControlAuto/Manual

Video CompressionH.264/MJPEG

S/N RatioMore than 50 dB

Back Light Comp.BLC / HLC / WDR(120dB)

Video StreamingMain Stream:1080P/720P(1 ~ 25/30fps), Extra Stream: D1/CIF(1 ~ 25/30fps)

Resolution1080P(1920×1080)/720P(1280×720)/D1(704×576)/CIF(352×288)

ICRAuto(ICR)/Color/B/W

Audio Input1 Ch.

Audio Output1 Ch.

Audio ComprerssionG.711a/ G.711u/ AAC

Alarm IN1 Ch.

Alarm Out1 Ch.

ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, ONVIF Profile S

Smart DetectionTripwire, Intrusion, Scene Change, Face Detect

User Account20 users

Smart PhoneiPhone, iPad, Android, Windows Phone

IRIR Range of 50 Mtr.

Micro SDMicro SD, Max 128GB

Operating Temperature-40°C~+60°C, Less than 95% RH

Power SourceDC12V, PoE(802.3af)

Power Consumption<10W (with IR on, motorized lens working)

Weatherproof StandardIP67 & IK10

RegulatoryCE, FCC and RoHS

DimensionΦ159mm × 117.9mm

Weight0.8kg
