CP-UNC-VH20ZL3-MD

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Network Camera / 2 MP  / CP-UNC-VH20ZL3-MD

CP-UNC-VH20ZL3-MD

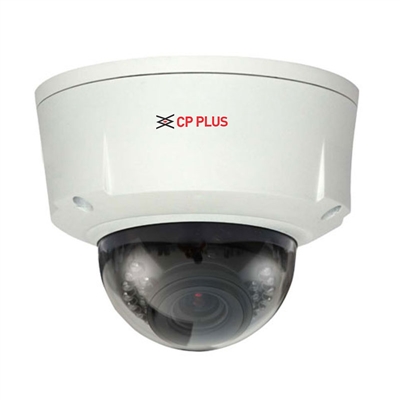

2 MP WDR IR Vandal Dome Camera – 30Mtr.

  • 1/1.9″ 2MP PS CMOS Image Sensor
  • Max 50/60fps@1080P
  • Support H.264,MJPEG dual codec
  • Ultra WDR(120dB), Ultra Defog, ROI, EIS, Smart detection, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
  • 4 -8mm Motorized Lens
  • IR Range of 30 Mtrs, IP66, IK10, PoE
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-VH20ZL3-MD

2 MP WDR IR Vandal Dome Camera – 30Mtr.

  • 1/1.9″ 2MP PS CMOS Image Sensor
  • Max 50/60fps@1080P
  • Support H.264,MJPEG dual codec
  • Ultra WDR(120dB), Ultra Defog, ROI, EIS, Smart detection, Day/Night(ICR), 3D-DNR, AWB, AGC, BLC
  • 4 -8mm Motorized Lens
  • IR Range of 30 Mtrs, IP66, IK10, PoE
  • Mobile Software: iCMOB, gCMOB, wCMOB
  • CMS Software: KVMS Pro, vOptimus Pro
  • Image Sensor1/1.9" 2MP Progressive scan CMOS
  • Minimum Illumination0. 002Lux/F1.65 (Color),0Lux/F1.65(IR on)
  • Shutter SpeedAuto/Manual, 1/3(4)~1/10000s
  • White BalanceAuto/Manual
  • Lens4-8 mm Motorized Lens
  • AGC ControlAuto/Manual
  • Video CompressionH.264/MJPEG
  • S/N RatioMore than 50dB
  • Back Light Comp.BLC/ HLC/ WDR(120dB)
  • Video StreamingMain Stream:1080P/720P(1 ~ 50/60fps), Extra Stream: D1/CIF(1 ~ 50/60fps), Third Stream: 1080P/720P/D1(1 ~ 25/30fps)
  • Resolution1080P(1920× 1080) / 720P(1280× 720) /D1(704× 576) /CIF(352× 288)
  • Video Output1 Port
  • ICRAuto(ICR)/Color/B/W
  • Audio Input1 Channel
  • Audio Output1 Channel
  • Audio ComprerssionG.711a / G.711u
  • Alarm IN1 Channel In
  • Alarm Out1 Channel Out
  • ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP,RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS,Bonjour, ONVIF, PSIA, CGI
  • Smart DetectionTripwire, Intrusion, Scene Change, Missing/Abandoned, Audio detect, Face detect
  • User Account20 Users
  • Smart PhoneiPhone, iPad, Android, Windows Phone
  • Micro SDMax 64GB
  • Operating Temperature-30°C~+60°C, Less than 95% RH
  • Power SourceDC12V(AC24V optional), PoE (802.3af)
  • Power Consumption<12W (IR on: +2W)
  • Weatherproof StandardIP66 & IK10
  • DimensionΦ151mm×119mm
  • Weight1.25 Kg.
