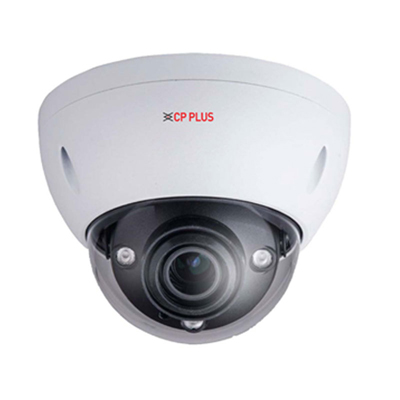

CP-UNC-VH4K12ZL5-VM
4K Full HD IR Vandal Dome Camera – 50Mtr.
- 1/1.7″ 12Megapixel progressive scan CMOS
- Max 15fps@12 MP, 25/30fps@4K
- H.264 and MJPEG dual-stream encoding
- DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
- 4.1mm ~16.4mm motorized lens
- IR Range of 50 Mtrs, IP67, IK10, PoE
- Mobile Software: iCMOB, gCMOB
- CMS Software: KVMS Pro, vOptimus Pro
Image Sensor1/1.7" 12Megapixel progressive scan CMOS
Minimum Illumination0.05Lux/F1.4(Color); 0Lux/F1.4(IR on)
Shutter SpeedAuto/Manual, 1/3(4)~1/100000s
White BalanceAuto/Sunny/Night/Outdoor/Customized
Lens4.1mm~16.4mm
AGC ControlAuto/Manual
Video CompressionH.264/H.264B/H.264H/ MJPEG
S/N RatioMore than 50dB
Back Light Comp.BLC / HLC / DWDR
Video StreamingMain Stream: 12M(1~15fps)/8M(3840x2160) (1~25/30fps), Sub Stream :D1/CIF(1 ~ 25/30fps),Third Stream:1080P/720P/D1(1 ~ 25/30fps)
Resolution12M(4000x3000)/8M(4096×2160)/8M(3840×2160)/1080P(1920×1 080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Video Output1 Port
ICRAuto(ICR)/Color/B/W
Audio Input1 Channel
Audio Output1 Channel
Audio ComprerssionG.711a/ G.711u/ AAC
Alarm IN1 Channel
Alarm Out1 Channel
ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ONVIF,PSIA,CGI
Smart DetectionTripwire, Intrusion,Scene change Missing/Abandoned Audio detect, Defocus detect Face detect
User Account20 Users
Smart PhoneiPhone, iPad, Android Phone
IRIR Range of 50 Mtr.
Micro SDMicro SD, Max 128GB
Operating Temperature-30°C~+60°C, Less than 95% RH
Power SourceDC12V/AC24V, PoE (802.3at)
Power Consumption<24W (with IR on, motorized lens working)
Weatherproof StandardIP67 & IK10
DimensionΦ159mm×117.9mm
Weight1.1kg
