Active System Integration

CP-UNC-WD13L3-M

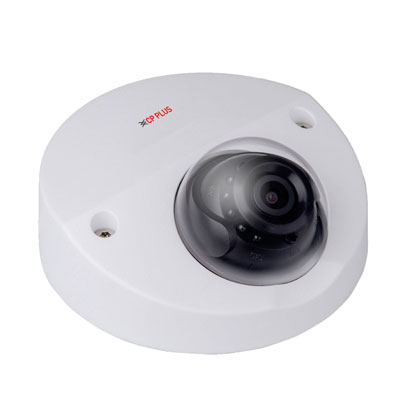

1.3 MP HD IR Vandal Dome Camera – 30Mtr.

1/3″ 1.3Megapixel PS CMOS Image Sensor
Max 25/30fps@1.3MP
H.264 and MJPEG dual-stream encoding
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart Detection supported
3.6mm fixed lens (2.8mm, 6mm optional)
IR Range of 30 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

CP-UNC-WD13L3-M

1.3 MP HD IR Vandal Dome Camera – 30Mtr.

1/3″ 1.3Megapixel PS CMOS Image Sensor
Max 25/30fps@1.3MP
H.264 and MJPEG dual-stream encoding
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart Detection supported
3.6mm fixed lens (2.8mm, 6mm optional)
IR Range of 30 Mtrs, IP67, PoE
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS Pro, vOptimus Pro

Image Sensor1/3" 1.3Megapixel progressive scan CMOS

Minimum Illumination0. 01Lux/F2.0(Color), 0Lux/F2.0(IR on)

Shutter SpeedAuto/Manual, 1/3(4)~1/10000s

White BalanceAuto/Manual

Lens3.6mm(2.8mm, 6mm optional)

AGC ControlAuto/Manual

S/N RatioMore than 50dB

Back Light Comp.BLC / HLC / DWDR

Video StreamingMain Stream 1.3M/720P(1 ~ 25/30fps),Sub Stream D1/CIF(1 ~ 25/30fps),Third Stream 720P(1-14/7fps)

Resolution1.3M(1280x960)/720P(1280× 720)/ D1(704× 576/704× 480) /CIF(352× 288/352× 240)

ICRAuto(ICR)/Color/B/W

Audio Input1 Channel

Audio Output1 Channel

Audio ComprerssionG.711a/ G.711u/ AAC

Alarm IN1 channel

Alarm Out1 channel

ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x

Smart DetectionTripwire, Intrusion, Scene Change, Face detect,Abandoned/Missing,Audio detect

User Account20 Users

Smart PhoneiPhone, iPad, Android, Windows Phone

IRIR Range of 20 Mtr.

Micro SDMicro SD Max 128GB

Operating Temperature-30°C~+60°C, Less than 95% RH

Power SourceDC12V, PoE (802.3af)

Power Consumption<5W

Weatherproof StandardIP67,IK10

DimensionΦ 106mm× 50.3mm

Weight0.35kg
