- 3 Dimensional Joystick Control of PTZ Functions
- Preset Position, Auto Scan, Auto Pan, Auto Tour & Pattern Control
- Supports RS485, RS422, USB, RS232 and Network
- Auxiliary Functions
- Network Video Server
- On-Screen Menu & User Operation Procedure Tips
- Connect KVMS Pro via USB

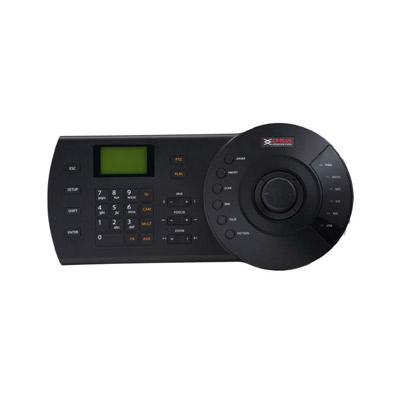

Keyboard KeypanelElectromechanical
Joystick3-axis, vector-solving, with twisting, return to-center head
Keyboard ConnectorRJ-45,RS232,RS485,RS422,USB
Keyboard CommunicationDirect Mode, Network Mode
Direct ModeInterface: RS232/RS485
Network ModeInterface: RJ45 DVR/Network Dome: IP Address/Port/Protocol
ResolutionLCD, 75.2mm x 33.85mm
Power SupplyPower adapter, input 100V~240V 50Hz / 60Hz,output DC12V/1000mA
Power Consumption5W
Working Temp-10~+55℃
Working Humidity10%~90%
Atmosphere Pressure86kpa~106kpa
Dimension330mmx160(140)mmx37.5(21)mm (W× D×H) (height: 100mm including
Weight2.5Kg
