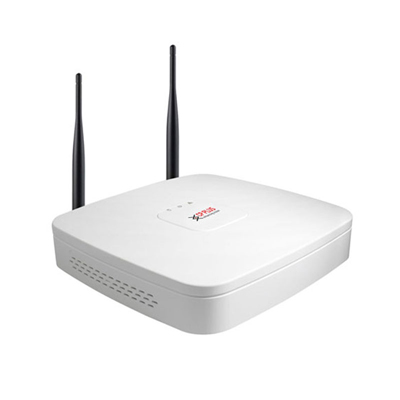

CP-UNR-404T1-W
4 Ch. Wi-Fi Network Video Recorder
Up to 4 channel IP camera inputs
H.264/MJPEG dual codec decoding
Up to 5Mp resolution preview&playback
Max 80Mbps incoming bandwidth
Support 1 SATA HDDs up to 4TB, 2 USB2.0
HDMI / VGA simultaneous video output
Support WPS one-key add
Support Multi-brand network cameras
ONVIF Version 2.3 conformance
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS, KVMS Pro
ProcessorDual-core embedded processor
Operating SystemEmbedded LINUX
IP Camera Input4 channel
Two-way Talk1 channel Input, 1 channel Output, RCA
User InterfaceGUI
Video Output1 HDMI, 1 VGA
Video Resolution5Mp(2560×1920) / 3Mp(2048×1536) / 1080P(1920×1080) / 720P(1280×720) / D1 (704×576/704×480)
Motion DetectionMD Zones: 396(22×18).
Video Losssupports
Camera Blanksupports
Hard Disk1 SATA ports, up to 4TB
Smart PhoneiPhone, iPad, Android, Windows Phone
Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen
Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
Backup ModeUSB Device / Internal SATA burner/ Network
Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RJ45
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Max User Account128 users
Ethernet1 RJ-45 port (10/100M/1000M)
ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPOE, DDNS, FTP, Alarm Server,ONVIF Version 2.3
Power SupplyDC12V/2A
Power Consumption10W(without HDD)
Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension205mm × 205mm × 40mm
Weight0.5 Kg (without HDD)
