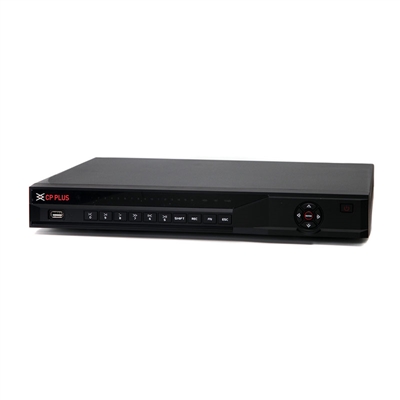

CP-UNR-404T2N
4 Ch. Network Video Recorder
4 Ch. with 1080p Realtime Live View
H.264/MJPEG dual codec decoding
Up to 5Mp resolution preview&playback
Max 200Mbps incoming bandwidth
Support 2 SATA HDDs up to 8TB, 2 USB2.0
HDMI / VGA simultaneous video output
Support Multi-brand network cameras
ONVIF Version 2.4 conformance
Mobile Software: iCMOB, gCMOB, wCMOB
CMS Software: KVMS, KVMS Pro
ProcessorDual-core embedded processor
Operating SystemEmbedded LINUX
IP Camera Input4 channel
Two-way Talk1 channel Input, 1 channel Output, RCA
User InterfaceGUI
Video Output1 HDMI, 1 VGA
CompressionH.264 / MJPEG
Video Resolution2560 × 1920, 2048 × 1536, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768
Video RecordingMax 200 Mbps
Video Display Split4-Jan
Motion DetectionMD Zones: 396(22×18).
Video LossSupports
Camera BlankSupports
Hard Disk2 SATA ports, up to 8TB, Raid (Redundancy)
Smart PhoneiPhone, iPad, Android, Windows Phone
Trigger EventsRecording, PTZ, Tour, Alarm, Video Push, Email, FTP, Spot, Buzzer & Screen
Recording ModeManual, Schedule(Regular(Continuous), MD, Alarm), Stop
Search ModeTime/Date, Alarm, MD & Exact search (accurate to second), Smart search
PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection,Digital zoom
Backup ModeUSB Device / Internal SATA burner/ Network
Interface Ports1 HDMI, 1 VGA, 2 USB2.0, 1 RS485, 1 RS232, 1 RJ45
Record Interval1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Max User Account128 users
Ethernet1 RJ-45 port (10/100M/1000M)
ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter,PPPOE, DDNS, FTP, Alarm Server,ONVIF Version 2.3
Power SupplyDC12V/4A
Power Consumption20W(without HDD)
Working Temp-10 ~+55°C / 10~90%RH / 86~106kpa
Dimension375mm×285mm×50mm
Weight2 Kg (without HDD)
