CP-UNR-7256Q24

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Network Video Recorder (NVR) / 256ch  / CP-UNR-7256Q24

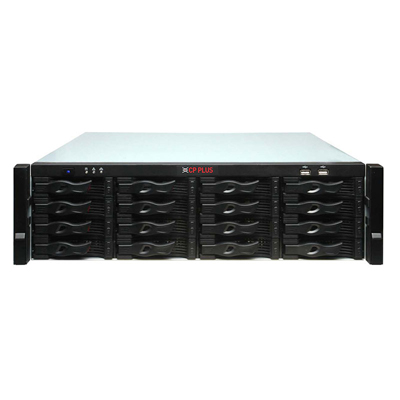

CP-UNR-7256Q24

 256 Channel Super Network Video Recorder

  • Max 256ch IP cameras connection
  • Max 512Mbps incoming bandwidth
  • 2 HDMI (Different Source), 1 VGA, 8 HDMI (Optional)
  • Support 24 hot-swap HDDs Up to 8TB capacity for each HDD
  • Supports RAID 0/1/5/6/10/50/60
  • Support Multi-brand network cameras
  • Supports iSCSI and Mini SAS for Expanded Storage Space
  • ONVIF Version 2.4 conformance
  • Mobile Software: iCMOB, gCMOB
  • CMS Software:KVMS, KVMS Pro

CP-UNR-7256Q24

 256 Channel Super Network Video Recorder

  • Max 256ch IP cameras connection
  • Max 512Mbps incoming bandwidth
  • 2 HDMI (Different Source), 1 VGA, 8 HDMI (Optional)
  • Support 24 hot-swap HDDs Up to 8TB capacity for each HDD
  • Supports RAID 0/1/5/6/10/50/60
  • Support Multi-brand network cameras
  • Supports iSCSI and Mini SAS for Expanded Storage Space
  • ONVIF Version 2.4 conformance
  • Mobile Software: iCMOB, gCMOB
  • CMS Software:KVMS, KVMS Pro
  • ProcessorIntel® Core™ i7 Processors
  • Operating SystemEmbedded LINUX
  • Two-way Talk1 Channel Input, 1 Channel Output, RCA
  • User InterfaceGUI
  • Video Input256 Channel
  • CompressionH.264/MJPEG
  • Video Resolution1920 × 1080 , 1280 × 1024, 1280 × 720 , 1024 × 768
  • Video Recording512Mbps
  • Video Display Split1st screen: 1/4/6/8/9/16/32/64, 2nd Screen: 1/4/8/9/16
  • Motion DetectionMD Zones: 396(22×18)
  • Alarm Input4ch, low level effective, green terminal interface
  • Alarm Output4 Channel, NO/NC Programmable, Green Terminal Interface
  • Hard Disk24 SATA III Ports, up to 192TB, 1 eSATA Port
  • Smart PhoneiPhone, iPad, Android
  • Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • HDD ManagementSingle, Raid 0/1/5/6/10/50/60 (Support Global HDD Hot-spare), 2 Mini SAS Port, for Storage Expansion
  • Recording ModeManual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop
  • Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
  • Playback128 Mbps in Raid 5 Mode; 64 Mbps in single HDD Mode
  • Backup ModeUSB Device/Network
  • Interface Ports2 HDMI (Different Source), 1 VGA 8 HDMI (Optional), Support Hot-swap, 4 USB Ports (2 USB 2.0 , 2 USB 3.0 ), 1 RS485, 1 RS232
  • Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
  • Max User Account128 users
  • Ethernet4 RJ-45 ports(10/100/1000M), 4 Ethernet ports joint working or 4 independent 1000Mbps Ethernet ports
  • ProtocolsHTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search, ONVIF 2.4, CGI Conformant
  • Power SupplyAC100V ~ 240V, 50 ~ 60 Hz
  • Power Consumption<200W (Without HDD)
  • Working Temp-10°C ~ +55°C, 0 ~ 90% RH, 86 ~ 106kpa
  • Dimension482.6mm x 544.45mm x 175mm
  • Weight24.5kg (without HDD)
