CP-UVC-TB40L3-D

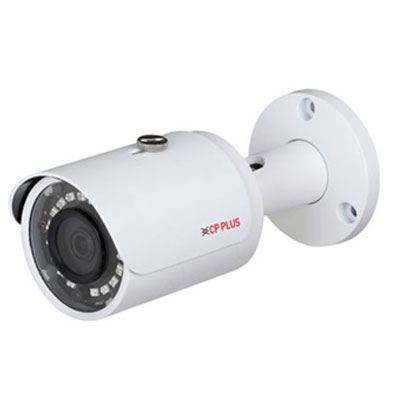

4 MP WDR IR HDCVI Bullet Camera – 30 Mtr.

  • 1/3″ 4MP PS CMOS Image Sensor
  • Max. 25fps@4MP
  • WDR(120dB), Day/Night(ICR), 2D/3D DNR, AWB, AGC, BLC, HLC
  • 3.6mm lens (2.8mm, 6mm optional)
  • OSD Menu, control over coaxial cable, 2D/3D-DNR
  • IR Range of 30 Mtrs., IP67
  • HD and SD dual-output

CP-UVC-TB40L3-D

4 MP WDR IR HDCVI Bullet Camera – 30 Mtr.

  • 1/3″ 4MP PS CMOS Image Sensor
  • Max. 25fps@4MP
  • WDR(120dB), Day/Night(ICR), 2D/3D DNR, AWB, AGC, BLC, HLC
  • 3.6mm lens (2.8mm, 6mm optional)
  • OSD Menu, control over coaxial cable, 2D/3D-DNR
  • IR Range of 30 Mtrs., IP67
  • HD and SD dual-output
  • Image Sensor1/3" PS CMOS
  • Minimum Illumination0.01Lux/F1.5, 0Lux IR on
  • Effective Pixels2560×1440 , 4MP
  • Shutter SpeedPAL: 1/4s~1/100,000s , NTSC: 1/3s~1/100,000s
  • White BalanceAuto / Manual
  • Lens3.6mm (2.8mm, 6mm Optional)
  • AGC ControlAuto / Manual
  • S/N RatioMore than 65dB
  • Back Light Comp.BLC / HLC / WDR(120dB)
  • Video Streaming25fps@4MP , 25/30fps@1080P , 25/30fps@720P
  • Video Output1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output
  • ICRAuto (ICR) / Manual
  • IRIR Range of 30 Mtr.
  • No. of IR LEDs18pcs
  • Operating Temperature-30°C~+60°C / Less than 90%RH
  • Power Source12V DC ±25%
  • Power ConsumptionMax 4.9W (12V DC, IR on)
  • Weatherproof StandardIP67
  • Dimension164.7mm x 70mm x 71.6mm
  • Weight0.35 kg
