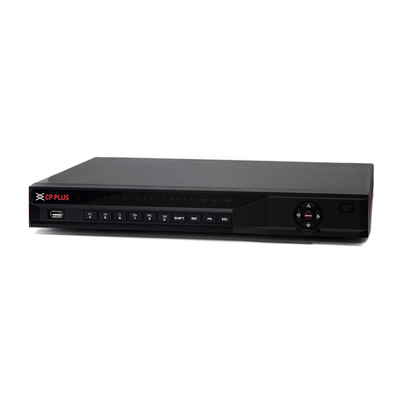

CP-UVR-0401D2-4M

 4 Ch. 4MP Cosmic DVR

  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Support upto 5MP IP Camera
  • H.264+ / H.264 dual-stream video compression
  • Max 24Mbps Incoming Bandwidth
  • All channel 4MP Non-Realtime Recording
  • HDMI / VGA Simultaneous Video Output
  • Support 2 SATA HDD up to 16TB, 2 USB Ports
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS, KVMS Pro

CP-UVR-0401D2-4M

 4 Ch. 4MP Cosmic DVR

  • Support HDCVI/AHD/TVI/CVBS/IP video inputs
  • Support upto 5MP IP Camera
  • H.264+ / H.264 dual-stream video compression
  • Max 24Mbps Incoming Bandwidth
  • All channel 4MP Non-Realtime Recording
  • HDMI / VGA Simultaneous Video Output
  • Support 2 SATA HDD up to 16TB, 2 USB Ports
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS, KVMS Pro
  • ProcessorEmbedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input4+2 Channel, each channel up to 5MP
  • Two-way TalkReuse audio in/out, RCA
  • User InterfaceGUI
  • Video Input4 channel, BNC
  • Video Output1 HDMI, 1 VGA
  • Video StandardNTSC(525Line, 60f/s), PAL(625Line, 50f/s)
  • CompressionH.264+/H.264
  • Video Resolution4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
  • Video RecordingMain stream: 4MP/3MP(1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps) , Sub steram: 960H(1~12fps); D1/CIF/QCIF(1~25/30fps)
  • Video Display Split1/4/6
  • Audio Input1 channel, RCA
  • Audio Output1 channel, RCA
  • Motion DetectionMD Zones: 396 (22 × 18)
  • Video LossSupports
  • Camera BlankSupports
  • Hard Disk2 SATA port, up to 16TB
  • Smart PhoneiPhone, iPad, Android Phone
  • Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
  • Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  • Backup ModeUSB Device / Network
  • Interface Ports1 HDMI, 1 VGA, 1 RS485, 2 USB Ports (2 USB 2.0)
  • Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
  • Max User Account128 users
  • Ethernet1 RJ-45 Port (100M)
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 2.42, CGI Conformant
  • Power SupplyDC12V/4A
  • Power Consumption<15W (Without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH
  • Dimension375mm x 287mm x 53mm
  • Weight2.35 kg (without HDD)
