CP-UVR-0801FM2

WE DON'T JUST SELL PRODUCTS, WE PROVIDE SOLUTIONS
Home / Product / Digital Video Recorder (DVR) / 8ch  / CP-UVR-0801FM2

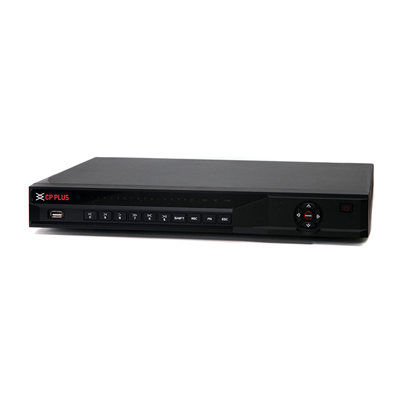

CP-UVR-0801FM2

8 Ch. 4MP HDCVI DVR

  • Support HDCVI / CVBS video inputs
  • Support upto 5MP IP Camera
  • H.264Plus / H.264 dual-stream video compression
  • Max 48Mbps Incoming Bandwidth
  • All channel 4MP Non-Realtime Recording
  • HDMI / VGA Simultaneous Video Output
  • Support 2 SATA HDD up to 12TB, 2 USB Ports
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS, KVMS Pro

CP-UVR-0801FM2

8 Ch. 4MP HDCVI DVR

  • Support HDCVI / CVBS video inputs
  • Support upto 5MP IP Camera
  • H.264Plus / H.264 dual-stream video compression
  • Max 48Mbps Incoming Bandwidth
  • All channel 4MP Non-Realtime Recording
  • HDMI / VGA Simultaneous Video Output
  • Support 2 SATA HDD up to 12TB, 2 USB Ports
  • Mobile Software: iCMOB, gCMOB
  • CMS Software: KVMS, KVMS Pro
  • ProcessorEmbedded processor
  • Operating SystemEmbedded LINUX
  • IP Camera Input8+4 Channel, each channel up to 5MP
  • Two-way TalkReuse audio in/out, RCA
  • User InterfaceGUI
  • Video Input8 channel, BNC
  • Video Output1 HDMI (up to 3840 x 2160),1 VGA
  • Video StandardNTSC(525Line, 60f/s), PAL(625Line, 50f/s)
  • CompressionH.264+/H.264
  • Video Resolution4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF
  • Audio Input1 channel
  • Audio Output1 channel
  • Motion DetectionMD Zones: 396 (22 × 18)
  • Video Losssupports
  • Camera Blanksupports
  • Hard Disk2 SATA port, up to 12TB
  • Smart PhoneiPhone, iPad, Android Phone
  • Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
  • Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
  • Search ModeTime /Date, Alarm, MD and Exact Search (accurate to second)
  • PlaybackPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
  • Backup ModeUSB Device / Network
  • Interface Ports1 HDMI, 1 VGA, 1 RS485, 2 USB Ports (1 USB 2.0 , 1 USB 3.0)
  • Record Interval1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
  • Max User Account128 users
  • Ethernet1 RJ-45 Port (1000M)
  • ProtocolsHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search, ONVIF 2.42, CGI Conformant
  • Power SupplyDC12V/4A
  • Power Consumption<15W (Without HDD)
  • Working Temp-10 ~+55°C / 10~90%RH
  • Dimension375mm x 287mm x 53mm
  • Weight2.35kg (without HDD)
