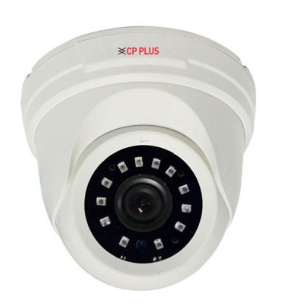

CP-VAC-D13L2

1.3 MP HD IR Dome Camera – 20 Mtr.

  • 1.3 MP HQIS Pro Image Sensor
  • 25/30fps@1.3MP
  • Day/Night(ICR), AWB, AGC, BLC
  • Plug-n-Play HD/SD Camera
  • 3.6mm Lens
  • Equipped with fine IR LEDs for clearer night vision
  • IR Range of 20 Mtr.
  • Compatible with HDx, AHD, HDCVI, CVBS and HDTVI DVRs

CP-VAC-D13L2

1.3 MP HD IR Dome Camera – 20 Mtr.

  • 1.3 MP HQIS Pro Image Sensor
  • 25/30fps@1.3MP
  • Day/Night(ICR), AWB, AGC, BLC
  • Plug-n-Play HD/SD Camera
  • 3.6mm Lens
  • Equipped with fine IR LEDs for clearer night vision
  • IR Range of 20 Mtr.
  • Compatible with HDx, AHD, HDCVI, CVBS and HDTVI DVRs
  • Image Sensor1/3" 1.3 MP HQIS Pro Image Sensor
  • Minimum IlluminationColor(0.1Lux) , (0 Lux IR LED On)
  • Shutter Speed1/50s(1/60s)-1/100,000s(Auto/Fixed)
  • White BalanceAuto
  • Lens3.6mm
  • AGC ControlAuto
  • S/N Ratio≥42.6dB
  • Back Light Comp.Auto
  • Resolution1.3MP
  • Video Output1.0Vp-p Composite Output (75O / BNC) , HD-CVI(960P)\ HD-TVI(960P)\ HD-CVI(960P)\ CVBS , CVI Default setting
  • Frame Rate30fps(60Hz) ,25fps(50Hz)
  • ICRsupport
  • Gamma Correction0.45
  • IRIR Range of 20 Mtr.
  • No. of IR LEDs12pcs
  • Operating Temperature-20°C~+55°C
  • Humidity10% ~ 90% , =95% RH no dew
  • Power SourceDC12V(+/-10%)
  • Power Consumption0.4W(2.5W after IR LED Powered on)
  • Dimension99.85mm x 99.85mm x 69.80mm
  • Weight0.15KG
