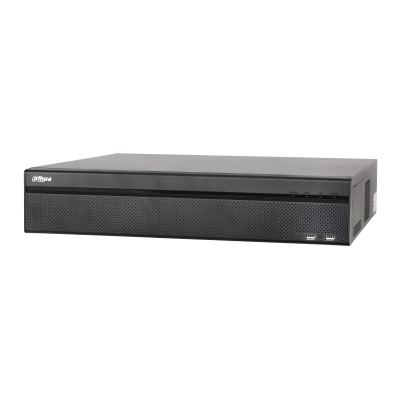

AT-NVR4416 4432-16P-4KS2(4HDD)
specification
- H.264+/H.264 codec decoding
- Max 200Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- HDMI/VGA simultaneous video output
- Support IPC UPnP, 8PoE ports
- Support ANR technology to enhance the storage reliability when the network break down
- H.264+/H.264 codec decoding
- Max 200Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- HDMI/VGA simultaneous video output
- Support IPC UPnP, 8PoE ports
- Support ANR technology to enhance the storage reliability when the network break down
| Brand Model | AT-NVR4416/4432-16P-4KS2 | ||||
|---|---|---|---|---|---|
| System | |||||
| Main Processor | Quad-core embedded processor | ||||
| Operating System | Embedded LINUX | ||||
| Audio and Video | |||||
| IP Camera Input | 16/32 Channel | ||||
| Two-way Talk | 1 Channel Input, 1 Channel Output, RCA | ||||
| Recording | |||||
| Compression | H.264+/H.264/MJPEG | ||||
| Resolution | 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc | ||||
| Record Rate | 200Mbps | ||||
| Bit Rate | 16Kbps ~ 20Mbps Per Channel | ||||
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
||||
| Network | |||||
| Interface | 1 RJ-45 Port (10/100/1000Mbps) | ||||
| Ethernet Port | 1 Independent 1000Mbps Ethernet Port | ||||
| PoE | 16 ports (IEEE802.3at/af) | ||||
| Video Detection and Alarm | |||||
| Trigger Events Recording, | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | ||||
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Camera Blank | ||||
| Alarm input | 2 Channel, Low Level Effective, Green Terminal Interface | ||||
| Relay Output | 16 Channel, NO/NC Programmable, Green Terminal Interface | ||||
| Playback and Backup | |||||
| Playback | 1/4/8/16 | ||||
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second), Smart search | ||||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
||||
| Backup Mode | USB Device/Network | ||||
