Matrix is a pioneer in providing best IP-PBX Phone System for Enterprises since 1997. Recently, Matrix

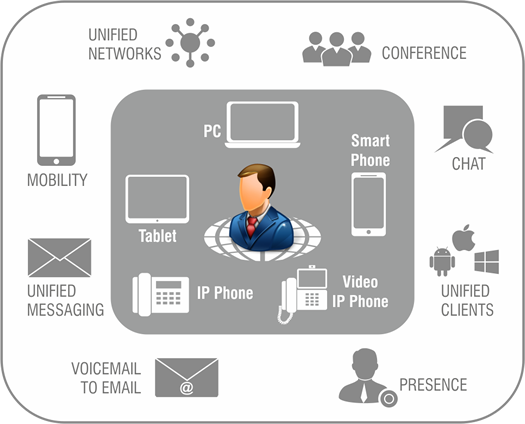

has taken a technology leap and moved a step ahead by launching Unified Communication Servers. Unified
Communication servers combines features of IP-PBX system in addition to mobility, collaboration and
messaging features. These unified communication servers suffice the functionality of enterprise phone
systems for small, medium and large businesses.

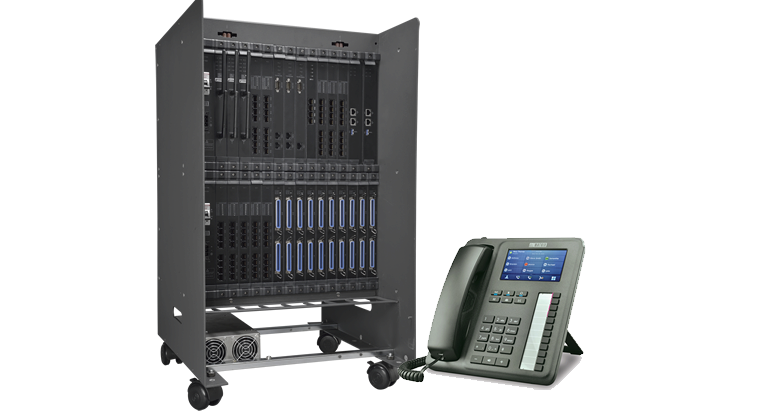

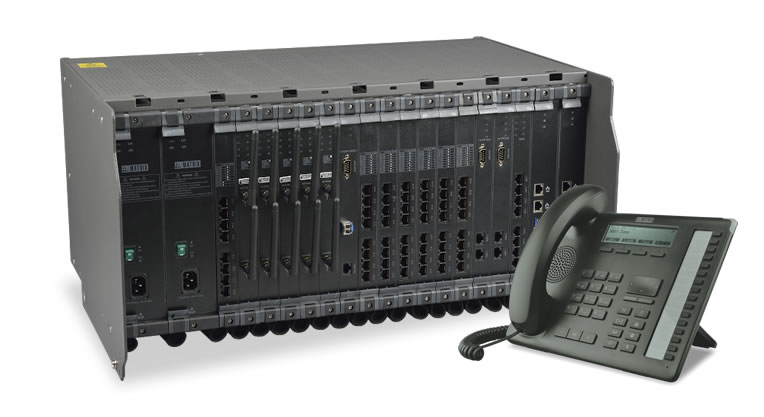

SARVAM UCS ENT is a server software which runs on ETERNITY MENX/LENX– The next-generation hardware
platforms. The next-generation platforms support up to 99 VOIP (SIP) trunks, 64 GSM ports, 8/24 T1/E1
ISDN PRI ports, 32 ISDN BRI ports and 128 analog trunks with up to 2000 UC users, 128 digital users and
512/1296 analog users. SARVAM UCS ENT is future-proof solution offering IP at core with seamless
connectivity to all-pervasive legacy and new generation wireless telecom networks like POTS, ISDN,
T1/E1 and GSM/3G.
The next-generation platforms support up to 99 VOIP (SIP) trunks, 64 GSM ports, 8 T1/E1 ISDN PRI ports, 32 ISDN BRI ports and 128 analog trunks with up to 2000 UC users, 128 digital users and 512 analog users.
The next-generation hardware platforms. The next-generation platforms support up to 99 VOIP (SIP) trunks, 64 GSM ports, 24 T1/E1 ISDN PRI ports, 32 ISDN BRI ports and 128 analog trunks with up to 2000 UC users, 128 digital users and 1296 analog users.
| ETERNITY MENX | ETERNITY LENX | |
|---|---|---|
 |
 |
|
| Compatible Server Software | SARVAM UCS ENT | SARVAM UCS ENT |
| VOIP (SIP) Trunks | 99 | 99 |
| GSM/3G Trunks | Up to 64 | Up to 64 |
| CO Ports | Up to 128 | Up to 128 |
| VOIP (VOCODER) Channels | Up to 248 | Up to 248 |
| ISDN T1/E1 PRI Channels | Up to 240 Ch. (8 Ports) | Up to 1200 Ch. (24 Ports) |
| ISDN BRI Channels | Up to 64 Ch. (32 Ports) | Up to 64 Ch. (32 Ports) |
| IP Subscribers | Up to 2000 | Up to 2000 |
| Digital Subscribers | Up to 128 | Up to 128 |
| Analog Subscribers | Up to 512 | Up to 1296 |
| Voice Mail Channels | Up to 64 | Up to 64 |
| Power Supply | 100-240 VAC, 47-60Hz 48VDC +20% to -15% |
48VDC +20% to -15% |
| Redundancy | Yes (AC and DC Power Supply and CPU Card) | Yes (DC Power Supply and CPU Card) |
| Hot-Swap | Yes (For Expansion Cards) | Yes (For Expansion Cards) |
| Installation | Wall Mount Table Top |
19" Rack Mount with 16U Enclosure Wall Mount Table Top |
