Active System Integration-GSM FCT For Emergency Applications

GSM FIXED CELLULAR TERMINAL – OVERVIEW

SIMADO GFX11 is a compact GSM fixed cellular terminal for voice applications, used to make and receive calls over GSM/3G network while retaining the existing infrastructure. Organization can buy GSM FCT Device to have GSM Trunk faciltiy for their conventional PBX. SIMADO GFX11 eliminates interconnection charges and provides substantial cost savings by turning all calls into mobile-to-mobile calls. It easily integrates with any PBX or telephone via GSM/3G network. SIMADO GFX11 is ideal for small offices, remote project sites and retail shops for cost-effective and reliable communication. The range of GSM Gateways manufactured by Matrix are field-proven and used by many service providers world-over.

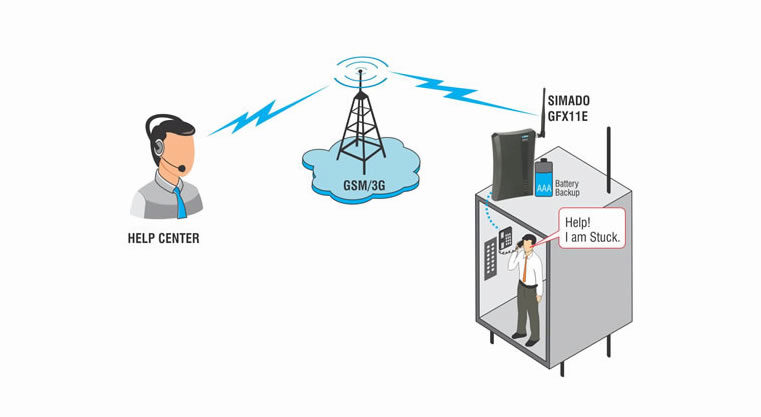

APPLICATION

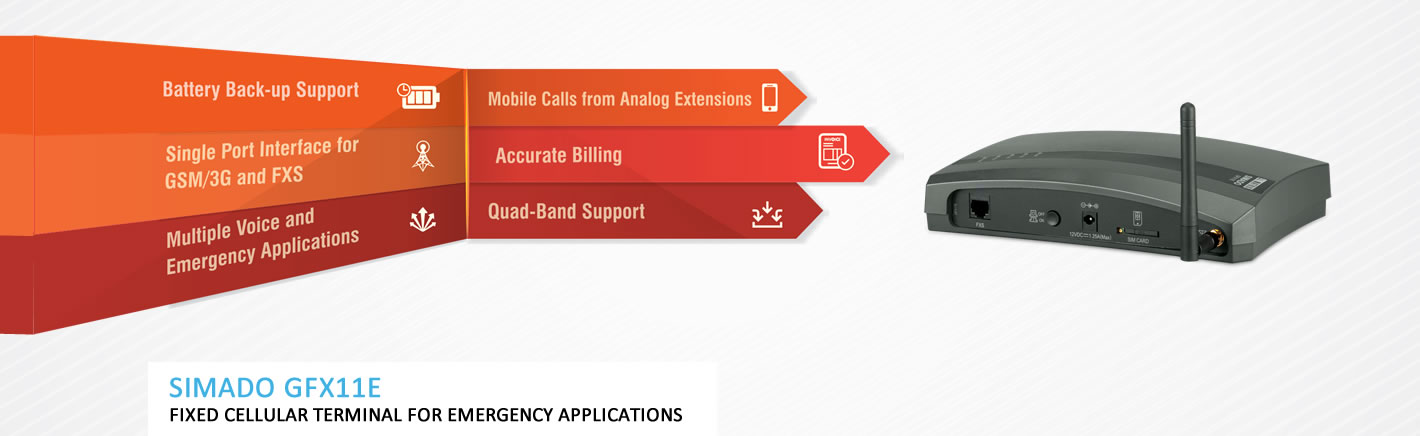

KEY FEATURES

Make and Receive Mobile Calls from Conventional Analog Phones
Quad-band GSM and Tri-band 3G Network Operation
Restrict Unwanted Calls from Dialling with List of Denied Numbers
Hotline Extension Dialling
Country Specific Programmable Call Progress Tones like Dial Tone, Ring Back Tone, Busy Tone, etc.
Direct Number Dialling on the Cellular Networks with Automatic Number Translation
CPC Signalling to Prevent Port Blockages and Accurate Billing
Caller ID Presentation on Analog Extension
Emergency Number Dialling, even in Absence of a SIM Card

SPECIFICATIONS

Mobile Port:
GSM/3G SIM Cards	One
Frequency Bands	Quad-band GSM 850/900/1800/1900MHz Tri-band WCDMA 850/1900/2100MHz Tri-band WCDMA 900/1900/2100MHz
SIM Interface	1.8, 3V SIM Interface
Compliance	ETSI GSM Phase2/2+

FXS Port:
Connector	RJ11
Dialing and Reception	Pulse and DTMF Dialing
CLIP	DTMF and FSK CLI Presentation
Answering and Disconnect Signaling	Polarity Reversal for Call Connect/Disconnect Signaling

Power Supply:
External Power Adaptor	Input: 100-240VAC, 47-63Hz Output: 12VDC@1.25A Power Consumption: 5W (Typical)
Battery	Type: NI-MH AAA 7.2v/800mA Talk Time Mode: Two Hours Idle Mode: Four Hours

Other:
Dimension (WXHXD)	19.8X4.5X13.4cm (7.79”x 1.77”x 5.27”)
Mounting Options	Wall Mount and Table Top
Unit Weight	0.395 kg (0.87lbs.) Approx.
Operating Temperature	0˚C to +45˚C (34˚F to +113˚F)
