GSM Fixed Cellular Terminal – Overview

SIMADO GFX11 is a compact GSM fixed cellular terminal for voice applications, used to make and receive calls over GSM/3G network while retaining the existing infrastructure. Organization can buy GSM FCT Device to have GSM Trunk faciltiy for their conventional PBX. SIMADO GFX11 eliminates interconnection charges and provides substantial cost savings by turning all calls into mobile-to-mobile calls. It easily integrates with any PBX or telephone via GSM/3G network.

SIMADO GFX11 is ideal for small offices, remote project sites and retail shops for cost-effective and reliable communication. The range of GSM Gateways manufactured by Matrix are field-proven and used by many service providers world-over.

KEY FEATURES

Make and Receive Mobile Calls from Conventional Analog Phones
Quad-band GSM and Tri-band 3G Network Operation
Restrict Unwanted Calls from Dialling with List of Denied Numbers
Hotline Extension Dialling
Country Specific Programmable Call Progress Tones like Dial Tone, Ring Back Tone, Busy Tone, etc.
Direct Number Dialling on the Cellular Networks with Automatic Number Translation
CPC Signalling to Prevent Port Blockages and Accurate Billing
Caller ID Presentation on Analog Extension
Emergency Number Dialling, even in Absence of a SIM Card

APPLICATION

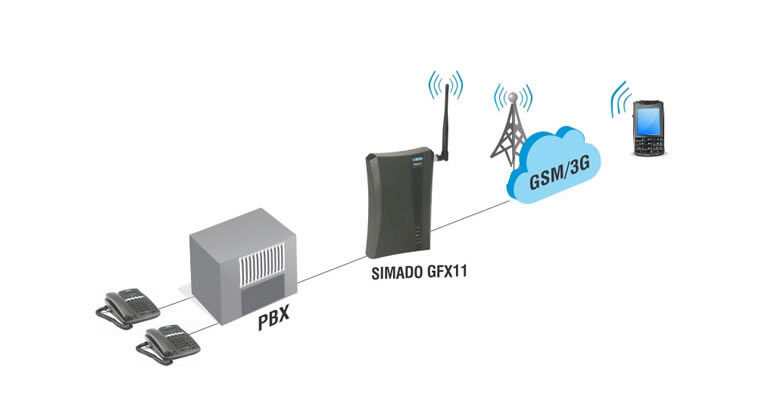

GSM/3G Connectivity to Existing PBX

Make Mobile Calls from Analog Extensions
Fixed-to-Mobile Call Cost Reduction
Maintain Existing Dialling Habits and Communication Pattern
Compatible with all Industry Leading PBXs

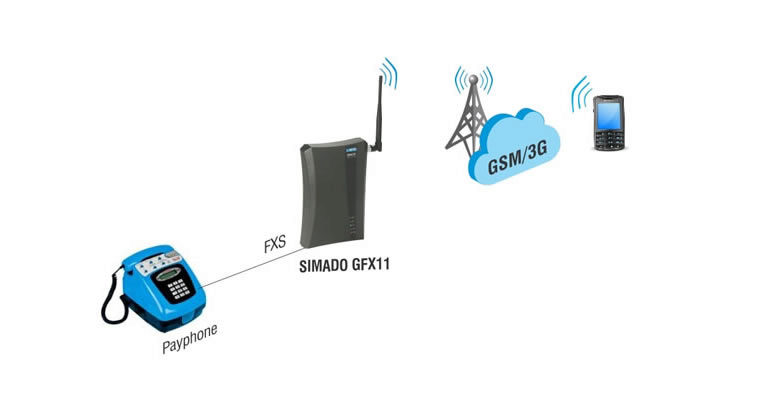

Pay-phone Applications

Accurate Billing with Pulse Metering
Supports Polarity Reversal, Ensuring Accurate Billing
Authentication to Ensure Proper Usage of the Payphone
Lock Payphone with Specific FCT, Avoids Improper Usage of System

SPECIFICATIONS

Models:
SIMADO GFX11	GSM FCT for Voice Applications
SIMADO GFX11 3G	3G FCT for Voice Applications

Mobile Port:
GSM/3G SIM Cards	1
Frequency Bands	Quad-band GSM850, EGSM900, DCS1800, PCS1900 Tri-band WCDMA 850/1900/2100 MHz or Tri-band WCDMA 900/1900/2100 MHz
SIM Interface	1.8, 3V SIM Interface
Compliance	ETSI GSM Phase2/2+

FXS Port
Connector	RJ11
Dialling and Reception	Pulse and DTMF Dialling
CLIP	DTMF and FSK CLI Presentation
Answering and Disconnect Signalling	Polarity Reversal for Call Connect/Disconnect Signalling

Power Supply:
Input	External Power Adaptor 100-240 VAC, 47-63Hz Output: 12VDC@1.25A
Power Consumption	5W (Typical)

Other:
Dimension	13.35 x 19.8 x 4.46 cm (5.26”x 7.80”x 1.76”)
Mounting Options	Wall Mount and Table Top
Operating Temperature	0°C to +45°C (34°F to +133°F)
