SETU VTEP is a compact VoIP solution, dedicated and feature-rich VoIP to T1/E1 PRI Gateway. It is a single-span Gateway offering 30 simultaneous VOIP to ISDN PRI calls. This in-line device sits between ISDN PBX and T1/E1 PRI line to connect PBX users to the IP network for cost-effective communication. For an IP based system, it provides T1/E1 PRI trunking. The Gateway efficiently delivers toll grade voice quality with industry standard voice codecs and advanced QoS techniques. Multiple mounting options and remote management through web based console add to the operating ease. The Gateway is suitable for SMBs, large enterprises, VOIP service providers and system integrators for smooth migration to the new age IP telephony. It helps them control the communication overheads and realize an earlier return on investment through advanced features and functionalities. With SETU VTEP, multi-branch offices can use their existing broadband connections to setup cost-effective IP communication among them.
| Models: | |

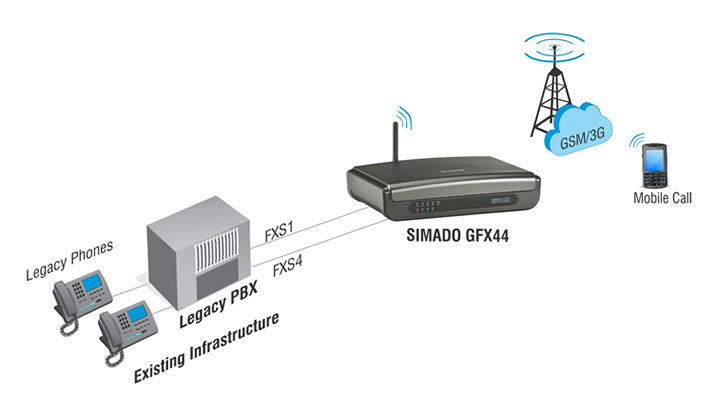

| SIMADO GFX44 | GSM to Analog Voice Gateway with Four GSM SIM and Four FXS Ports |
| SIMADO GFX44 3G | 3G to Analog Voice Gateway with Four 3G SIM and Four FXS Ports |
| Mobile Port: | |
| Frequency Bands | Quad-band GSM850, EGSM900, DCS1800, PCS1900
Tri-band WCDMA 850/1900/2100 MHz or Tri-band WCDMA 900/1900/2100 MHz |
| Compliance | ETSI GSM Phase2/2+ |
| SIM Interface | 1.8, 3V SIM Interface |
| Antenna | 1.8/2.5 *dBi, 50, SMA (Male) Connector,
Fixed Omni Directional Swivel Antenna1.8/3.0 *dBi, 50, SMA (Male) Connector, Omni Directional with a Cable Three Meters Long |
| FXS Port: | |
| Physical Connector | RJ11 |
| Dialling | DTMF and Pulse (10/20PPS) |
| CLI Presentation | DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI |
| Call Maturity | Polarity Reversal |
| Power Supply: | |
| Input | External Power Adaptor
Input: 90-265VAC, 47-63Hz Output: 12VDC@2A |
| Power Consumption | 8W (Typical) |
| Mechanical: | |
| Dimensions (WxHxD) | 23.1 X 5.5 X 16.2 cm (9.09”x2.16”x6.37”) |
| Unit Weight | 1.00 kg (2.21 lbs) Approx. |
| Shipping Weight | 1.83 kg (4.03 lbs) Approx. |
| Mounting Options | Wall Mount and Table Top |
| Environmental: | |
| Operating Temperature | 0° C to +45° C (32° F to +113° F) |
| Storage Temperature | -20° C to +70° C (-4° F to +158° F) |
| Operating Humidity | 5-95% RH (Non-condensing) |
| Storage Humidity | 0-95% RH (Non-condensing) at 40° C |
| Regulatory Compliances: | |
| IEC 60950-1, RoHS, FCC Part15, CE | |
