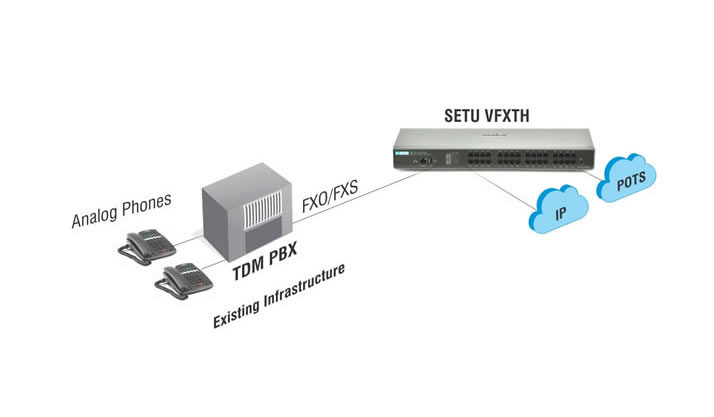

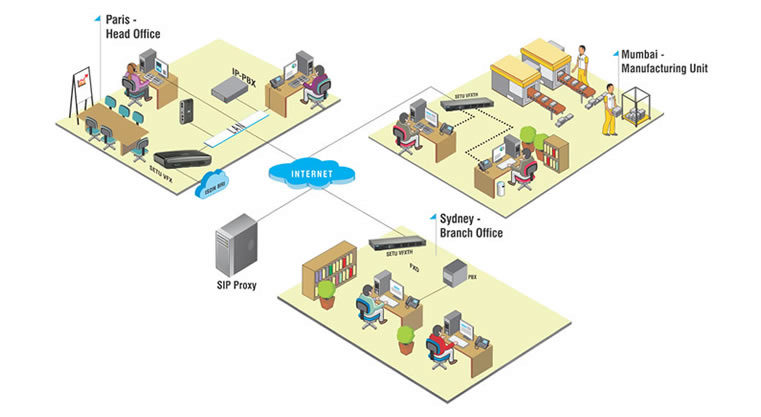

SETU VFX series is a range of multi-channel VOIP - FXO and FXS Gateways. VFX series offer 4-8-16-32 FXO/FXS Gateways to connect TDM based telephony infrastructure to an IP network. For organizations that have already migrated to IP, SETU VFX provides POTS trunking option. Ideal for legacy TDM phone systems, these Gateways offer access to new generation VOIP and benefits of low cost long distance calls. Alternatively, SETU VFX series provides POTS (CO) network access for IP Phone Systems and Softswitches for local area connectivity. SETU VFX series supports up to 32 VOIP channels, Fax over IP support and flexible dialing plans. The dedicated signal processing resources and superior protocol set ensures multiple call capabilities with toll grade voice quality. SETU VFX - VOIP-FXS and FXO Gateways enables small and medium businesses to create seamless office environment, integrate a traditional phone system into IP network and significantly reduce communication costs. These Gateways are ideally suitable for business and consumer VOIP services, including call centers and multi-location environment. SETU VFXTH also enables large organizations to connect branch offices dispersed globally for Site-to-Site IP Telephony. This in-turn reduces communication costs and helps them utilize existing telecom infrastructure.
Model: | |
SETU VFX404 | VOIP-FXO-FXS Gateway with Four VOIP, Four FXS and One FXO (Pass-through) Ports |
SETU VFX440 | VOIP-FXO-FXS Gateway with Eight VOIP and Four FXO Ports |
SETU VFX808 | VOIP-FXO-FXS Gateway with Eight VOIP, Eight FXS and One FXO (Pass-through) Ports |
SETU VFX880 | VOIP-FXO-FXS Gateway with Eight VOIP and Eight FXO Ports |
SETU VFXTH0808 | VOIP-FXO-FXS Gateway with 16 VOIP, Eight FXO and Eight FXS Ports |
SETU VFXTH3200 | VOIP-FXO-FXS Gateway with 32 VOIP and 32 FXO Ports |
SETU VFXTH0016 | VOIP-FXO-FXS Gateway with 16 VOIP and 16 FXS Ports |
SETU VFXTH0024 | VOIP-FXO-FXS Gateway with 24 VOIP and 24 FXS Ports |
SETU VFXTH0032 | VOIP-FXO-FXS Gateway with 32 VOIP and 32 FXS Ports |
VoIP Port: | |
Protocol | SIPv2, SDP, RTP (RFC 2833) |
Connector | Ethernet (RJ45) |
SIP Accounts | Up to 32 |
Echo Cancellation | G.168 with up to 128 ms Tail length |
Voice Codecs | G.711 (A/µ Law), G.723.1, G.729AB, GSM-FR and iLBC |
FXO Port | |
Connector | RJ45 |
Dialling and Reception | DTMF and Pulse Dialling |
CLIP | DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI |
PSTN Pass-Through | One (SETU VFX404 and SETU VFX808) |
FXS Port | |
Connector | RJ11 |
Dialling and Reception | Pulse and DTMF Dialling |
CLIP | DTMF and FSK CLI Presentation |
Call Maturity | Polarity Reversal for Call Connect/Disconnect Signalling |
Power Supply | |
Input | SETU VFX: 12VDC @2A through External Adaptor SETU VFXTH: 24VDC @2.5A through External Adaptor |
Power Consumption (Typical) | SETU VFX: 5W SETU VFXTH: 60W |
Other | |
Dimension | SETU VFX: 15.5 x 22.0 x 3.5cm (6.10”x8.7”x1.4”) SETU VFXTH: 40.7 x 17.2 x 5.1 cm (16.10”x6.8”x 2.0”) |
Mounting Options | Wall Mount and Table Top |
Operating Temperature | 0°C to +45°C (34°F to +113°F) |
