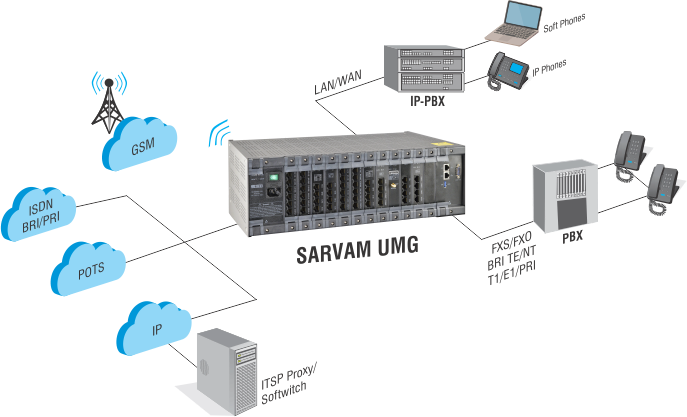

Matrix SARVAM UMG is a Universal Connectivity Media Gateway offering connectivity to VOIP, GSM/3G, T1/E1 PRI, ISDN BRI and POTS networks on a single platform. It allows users to make and receive calls transparently on all networks. It supports flexible and intelligent Least Cost Routing (LCR), leading to significant cost savings and round-the-clock connectivity. It allows enterprises to dynamically select one of the networks on per-call basis for benefits of improved reach, reduced cost and enhanced quality of service. Matrix SARVAM UMG links an organization’s existing infrastructure to the new age communication networks ensuring right connectivity and least cost for each and every call. The gateway is an ideal solution for workplaces such as call centers, ISP, ITSP, wholesale terminators and organizations experiencing high call traffic on per day basis. Matrix SARVAM UMG - the High Density Universal Media Gateway offers integrated interfaces for multiple network connectivity on a single platform. It can be used with PBX of any brand or even in standalone mode. The Gateway works as an adjunct to existing telephony infrastructure, with no need to replace any existing equipment. This not only saves additional investment on acquiring new equipment, but also saves time and efforts required for reinstallation of the system and retraining users. When connected with any existing PBX, the Universal Media Gateway remains completely transparent to all users and allows them to make and receive calls, and use the same PBX features. Universal routing combined with least cost routing and telephony costs can be significantly reduced by selecting the most economical network for call routing based on number, time, network, port and combinations of each. The universal slot architecture allows selection and configuration of interface options to match the exact call traffic requirements of an organization.
SYSTEM CAPACITY: | |
Expansion Slots | 12 |
Expansion Cards | 64 VOIP Channels per Module (Max. 2 Modules) |
4 GSM/3G SIM per Interface Card | |
23/30 Digital (T1/E1 PRI) Channels per Interface Card | |
8 BRI Channels per Interface Card | |
4/8/16 FXO Ports per Interface Card | |
8/16/20 FXS Ports per Interface Card | |
VOIP PORT: | |
Protocol | SIP v2 |
Physical Connector | Ethernet (RJ45) |
Voice Quality | G.168 Echo Cancellation, Layer3 QoS and DiffServ and CNG |
Voice Codecs | G.711 (A-law, μ-Law), G.723, G.729AB, GSM-FR, GSM-EFR and iLBC Voice Codec |
SIP Trunks | 120 |
MOBILE PORT: | |
Frequency Bands | Penta-band (GSM: 850/900/1800/1900, UMTS: 800/850/900/1900/2100) |
Tri-band WCDMA 850/1900/2100 MHz or Tri-band | |
WCDMA 900/1900/2100 MHz | |
Compliance | ETSI GSM Phase2/2+ |
SIM Interface | 1.8, 3V SIM Interface |
Antenna | Panel Mount or Extended Cable Antenna |
1.8/3.0 dBi, 50 Ω SMA (Male) Connector | |
T1/E1/PRI: | |
Channels | 2B+D |
Physical Connector | RJ48 (120Ω) |
Personality | Network (NT) and Terminal (TE) |
Switch Variants | AT&T 4ESS, AT&T 5ESS, DMS-100, ETSI NET5, ITU-T Q.921, ITU-T Q.931, NTT INS64, US NI2 (National ISDN 2), QSIG ECMA and France VN Signaling |
Framing | ESF for T1 and CEPT1 (with/without CRC) for E1 |
ISDN BRI PORT: | |
Physical Connector | RJ45 |
Operational Mode | Software Configurable NT/TE Modes |
Interface | S/T Interface, Point to Point and Point to Multi-point |
Switch Variant | AT&T 4ESS, DMS-100, ETSI NET3, ITU-T Q.921, ITU-T Q.931, NTT INS64, US NI1 (National ISDN 1) and France VNx Signalling |
FXO PORT: | |
Physical Connector | RJ11 |
Dialing | DTMF and Pulse (10/20PPS) |
Loop Limit | 1200W |
CLI Presentation | DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI |
FXS PORT: | |
Physical Connector | RJ11 |
Dialing | DTMF and Pulse (10/20PPS) |
CLI Presentation | DTMF, FSK ITU-T V.23 and FSK Bellcore 202A CLI |
Call Maturity | Polarity Reversal |
POWER SUPPLY: | |
Input | Option 1 (Mains): 100-240 VAC, 47-60 Hz |
Option 2 (DC): 48VDC +20% to -15% | |
Power Consumption | 170W (Typical) |
MECHANICAL: | |
Dimensions (WxHxD) | 43.65x22.6x17.35cm (17.18"x8.9"x6.83") |
Unit Weight | 5 kg (11.02lbs) |
Shipping Weight | 8 kg (17.63lbs) |
Mounting Options | Wall Mount, Table Top and 19” Rack Mount with 4U Enclosure |
ENVIRONMENTAL: | |
Operating Temperature | 0⁰C to +40⁰C (32⁰F to104⁰F) |
Storage Temperature | -40⁰C to +80⁰C (-40⁰F to +176⁰F) |
Operating Humidity | 5-95% RH (Non-condensing) |
Storage Humidity | 0-95% RH (Non-condensing) at 40°C |
REGULATORY COMPLIANCES: | |
IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 60950-1, IEC 6000 68-2-6:2007, IEC 68-2-27, IS:9000, TEC, RoHS, FCC Part15 and FCC68, CE |
SYSTEM RESOURCES | DESCRIPTION | SARVAM UMG (ETERNITY GENX) Max. Resources |
---|---|---|
Universal Slots | For Interface Expansion Cards (except VOIP and VMS) | 12 |
SIP Trunks | SIP Trunks (Clients) for ITSP or Peer-to-Peer | 120 |
VOIP Channels | VOIP Channels for Simultaneous Calling with Transcoding | 128 |
NX DBM VOCODER64 | DAUGTHER-BOARD MODULE on CPU for VOCODER (VOIP) Channels | 2 |
GSM/3G Ports | GSM/3G Network | 48 |
T1/E1 PRI Ports | T1 or E1 or ISDN PRI Network or Compatible Device | 8 |
BRI Ports | ISDN BRI Network or ISDN Compatible Devices | 48 |
CO/FXO (TWT) Ports | Two Wire Trunk (CO) Lines | 120 |
SLT/FXS Ports | Single Line Analog Telephones | 120 |
Max. Concurrent Calls from IP User to another IP User | IP-IP Audio Calls without Transcoding | 550 |
Max. Concurrent Calls from IP User to another IP User | IP-IP Audio Calls with Transcoding | 64 |
Max Concurrent IP-TDM Calls | IP-TDM Audio Calls | 128 |
